Product Summary
The HD64F2367VF33V is a microcomputer.
Parametrics
HD64F2367VF33V absolute maximum ratings: (1)Power supply voltage VCC PLLVCC: -0.3 to +4.0 V; (2)Input voltage (except ports 4, 9) Vin: -0.3 to VCC +0.3 V; (3)Input voltage (ports 4, 9) Vin: -0.3 to AVCC +0.3 V; (4)Reference power supply voltage Vref: -0.3 to AVCC +0.3 V; (5)Analog power supply voltage AVCC: -0.3 to +4.0 V; (6)Analog input voltage VAN: -0.3 to AVCC +0.3 V; (7)Operating temperature Topr Regular specifications: -20 to +75℃; (8)Wide-range specifications: -40 to +85℃; (9)Storage temperature Tstg: -55 to +125℃.
Features
HD64F2367VF33V features: (1)High-speed H8S/2000 central processing unit with an internal 16-bit architecture Upward-compatible with H8/300 and H8/300H CPUs on an object level Sixteen 16-bit general registers 65 basic instructions; (2)Various peripheral functions; (3)On-chip memory; (4)General I/O ports; (5)I/O pins: 83; (6)Input-only pins: 11; (7)Supports various power-down states; (8)Compact package.

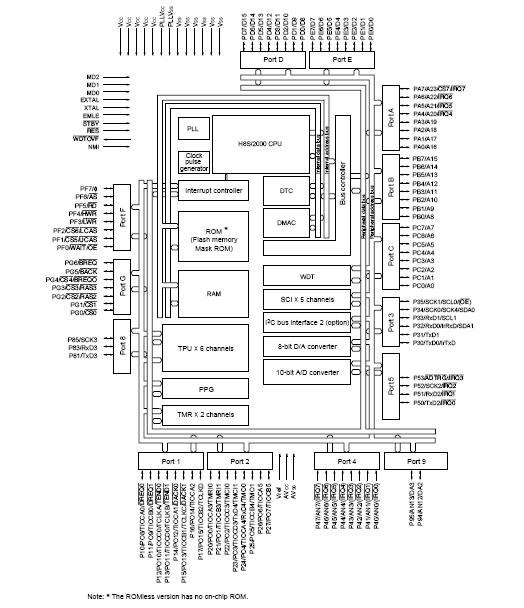

Diagrams
