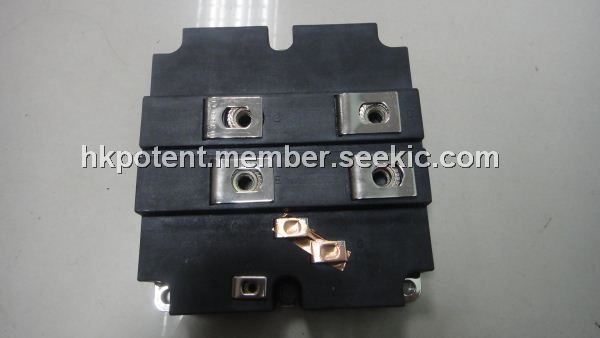

Product Summary

The FZ800R12KF5 is an IGBT. The applications of the FZ800R12KF5 include High power converters, motor drives, UPS systems, wind turbines.

Parametrics

FZ800R12KF5 absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)DC-collector current: 800A; (3)repetitive peak collector current: 1600A; (4)total power dissipation: 3550W; (5)gate-emitter peak voltage: ±20V.

Features

FZ800R12KF5 features: (1)4KV AC 1min Insulation; (2)Package with CTI ＞400; (3)High Creepage and Clearance Distances; (4)High Power Density; (5)Isolate Base Plate; (6)Standard Housing.

Diagrams

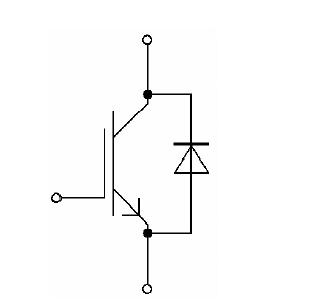

FZ800R12KF5 block diagram
