Product Summary

The EE80C188XL25 is a 16-bit high-integration embedded processor. The EE80C188XL25 provides an on-chip clock generator for both internal and external clock generation. The clock generator features a crystal oscillator, a divide-by-two counter, synchronous and asynchronous ready inputs, and reset circuitry.

Parametrics

EE80C188XL25 absolute maximum ratings: (1)Ambient Temperature under Bias:0 to 70℃; (2)Storage Temperature:-65 to 150℃; (3)Voltage on Any Pin with Respect to Ground:-1.0V to 7.0V; (4) Package Power Dissipation: 1W.

Features

EE80C188XL25 features: (1)Static, Modular CPU; (2)Clock Generator; (3)2 Independent DMA Channels; (4)Programmable Interrupt Controller; (5)3 Programmable 16-Bit Timers; (6)Dynamic RAM Refresh Control Unit; (7)Programmable Memory and Peripheral Chip Select Logic; (8)Programmable Wait State Generator; (9)Local Bus Controller; (10)Power-Save Mode; (11)System-Level Testing Support (High Impedance Test Mode).

Diagrams

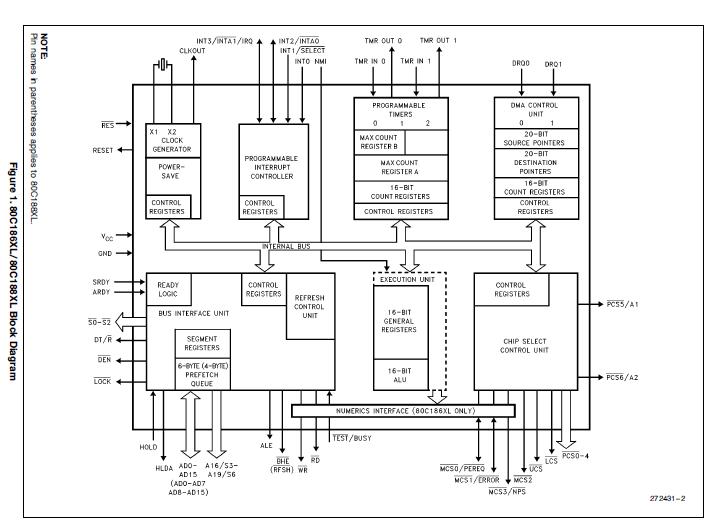

EE80C188XL25 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

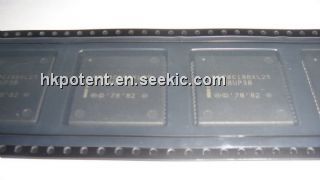

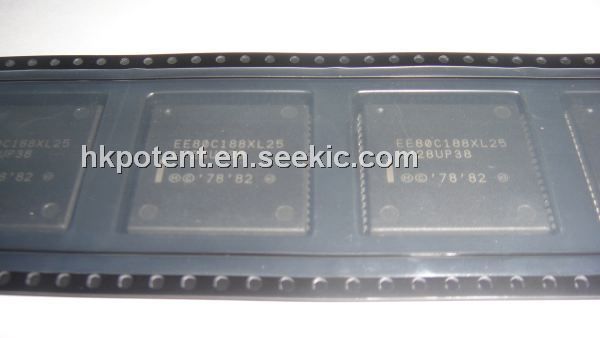

EE80C188XL25
EE80C188XL25


IC MPU 16-BIT 5V 25MHZ 68-PLCC

Data Sheet

Negotiable
