Product Summary

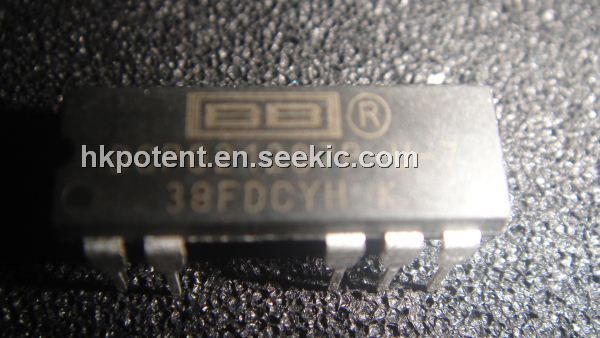

The DCP021207P-U-7 is an isolated, unregulated DC/DC converter. Requiring a minimum of external components and including on-chip device protection, the DCP021207P-U-7 provides extra features such as output disable and synchronization of switching frequencies. The applications of the DCP021207P-U-7 include Point-of-Use Power Conversion, Ground Loop Elimination, Data Acquisition, Industrial Control and Instrumentation, Test Equipment.

Parametrics

DCP021207P-U-7 absolute maximum ratings: (1)Input Voltage, 5V input models: 7 V; (2)Input Voltage, 12V input models: 15 V; (3)Input Voltage, 15V input models: 18 V; (4)Input Voltage, 24V input models: 29 V; (5)Storage temperature range: -60 to +125℃.

Features

DCP021207P-U-7 features: (1)Up To 89% Efficiency; (2)Thermal Protection; (3)Device-to-Device Synchronization; (4)SO-28 Power Density of 106W/in 3(6.5W/cm3); (5)EN55022 Class B EMC Performance; (6)UL1950 Recognized Component; (7)JEDEC 14-Pin and SO-28 Packages.

Diagrams

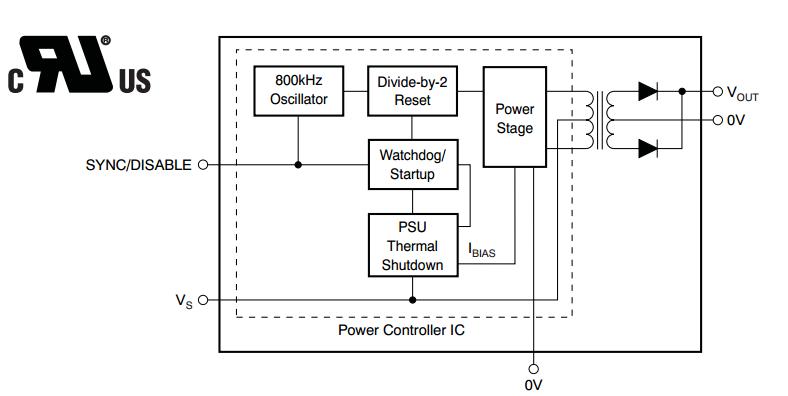

DCP021207P-U-7 block diagram
