Product Summary
The DA28F640J5A-150 is a 5 Volt Intel StrataFlash Memory. The DA28F640J5A-150 of the Intel StrataFlash memory family contains high-density memories organized as 8 Mbytes or 4Mwords (64-Mbit) and 4 Mbytes or 2Mwords (32-Mbit). The DA28F640J5A-150 can be accessed as 8- or 16-bit words. The 64-Mbit device is organized as sixty-four 128-Kbyte (131,072 bytes) erase blocks while the 32-Mbits device contains thirty-two 128-Kbyte erase blocks. Blocks are selectively and individually lockable and unlockable in-system.
Parametrics
DA28F640J5A-150 absolute maximum ratings: (1)Temperature under Bias Expanded :–20℃ to +70℃; (2)Storage Temperature: –65℃ to +125℃; (3)Voltage On Any Pin (except RP#): –2.0V to +7.0V; (4)RP# Voltage with Respect to GND during Lock-Bit Configuration Operations: –2.0V to +14.0V; (5) Output Short Circuit Current: 100mA.
Features
DA28F640J5A-150 features: (1)High-Density Symmetrically-Blocked Architecture; (2)4.5 V–5.5 V VCC Operation; (3)120 ns Read Access Time (32 M); (4)150 ns Read Access Time (64 M); (5)Enhanced Data Protection Features; (6)Industry-Standard Packaging SSOP Package (32, 64 M), TSOP Package (32 M); (7)Cross-Compatible Command Support; (8)32-Byte Write Buffer; (9)6,400,000 Total Erase Cycles (64 M); (10)3,200,000 Total Erase Cycles (32 M); (11)Automation Suspend Options; (12)System Performance Enhancements; (13)Operating Temperature –20℃ to + 85℃ (–40℃ to +85℃ on .25 micron ETOXVI) process technology parts).

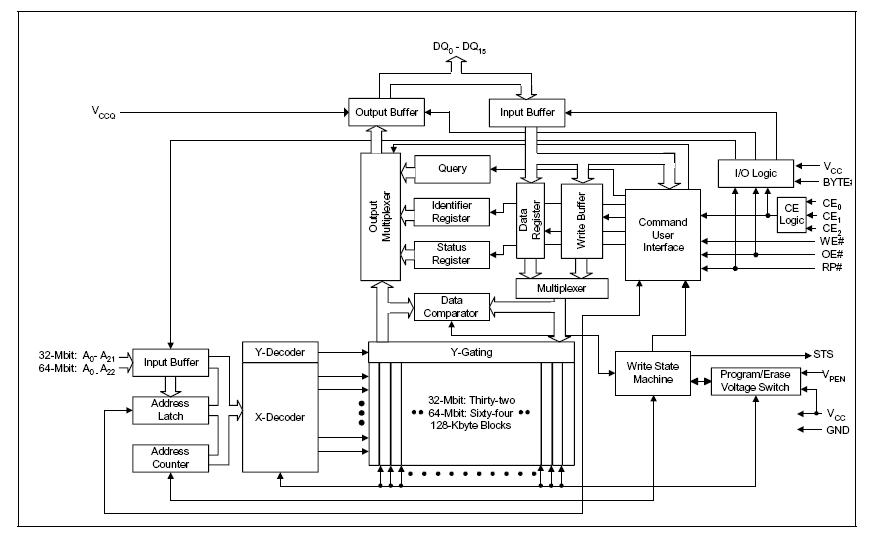

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DA28F640J5A-150 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
