CY8C21334-24PVXI

Product Summary

The CY8C21334-24PVXI is a PSoC Mixed-Signal Array. The CY8C21334-24PVXI consists of many Mixed-Signal Array with On-Chip Controller devices. The device is designed to replace multiple traditional MCU-based system components with one, low cost single-chip programmable component. A PSoC device includes configurable blocks of analog and digital logic, as well as programmable interconnect. This architecture allows the user to create customized peripheral configurations, to match the requirements of each individual application. Additionally, a fast CPU, Flash program memory, SRAM data memory, and configurable IO are included in a range of convenient pinouts.

Parametrics

CY8C21334-24PVXI absolute maximum ratings: (1)TSTG, Storage Temperature: -55 to +100℃; (2)TA, Ambient Temperature with Power Applied: -40 to +85℃; (3)Vdd, Supply Voltage on Vdd Relative to Vss: -0.5 to +6.0 V; (4)VIO, DC Input Voltage Vss: -0.5 to Vdd + 0.5 V; (5)VIOZ, DC Voltage Applied to Tri-state Vss: -0.5 to Vdd +0.5 V; (6)IMIO, Maximum Current into any Port Pin: -25 to +50 mA; (7)ESD, Electro Static Discharge Voltage: 2000 V; (8)LU, Latch-up Current: 200 mA.

Features

CY8C21334-24PVXI features: (1)Powerful Harvard Architecture Processor, M8C Processor Speeds to 24 MHz; Low Power at High Speed; 2.4V to 5.25V Operating Voltage; Operating Voltages Down to 1.0V Using On-Chip Switch Mode Pump (SMP); Industrial Temperature Range: -40℃ to +85℃; (2)Advanced Peripherals (PSoC Blocks), 4 Analog Type “E” PSoC Blocks Provide: 2 Comparators with DAC Refs; Single or Dual 8-Bit 28 Channel ADC; 4 Digital PSoC Blocks Provide: 8- to 32-Bit Timers, Counters, and PWMs; CRC and PRS Modules; Full-Duplex UART, SPI. Master or Slave; Connectable to All GPIO Pins; Complex Peripherals by Combining Blocks; (3)Flexible On-Chip Memory, 8K Flash Program Storage 50,000 Erase/Write Cycles; 512 Bytes SRAM Data Storage; In-System Serial Programming (ISSP); Partial Flash Updates; Flexible Protection Modes; EEPROM Emulation in Flash; (4)Complete Development Tools, Free Development Software (PSoC Designer.); Full-Featured, In-Circuit Emulator and; (5)Programmer; Full Speed Emulation; Complex Breakpoint Structure; 128K Trace Memory; (6)Precision, Programmable Clocking, Internal ±2.5% 24/48 MHz Oscillator; Internal Oscillator for Watchdog and Sleep; (7)Programmable Pin Configurations, 25 mA Drive on All GPIO; Pull Up, Pull Down, High Z, Strong, or Open Drain Drive Modes on All GPIO; Up to 8 Analog Inputs on GPIO; Configurable Interrupt on All GPIO; (8)Versatile Analog Mux, Common Internal Analog Bus; Simultaneous Connection of IO Combinations; Capacitive Sensing Application Capability; (9)Additional System Resources, I2C Master, Slave and Multi-Master to 400 kHz; Watchdog and Sleep Timers; User-Configurable Low Voltage Detection; Integrated Supervisory Circuit; On-Chip Precision Voltage Reference.

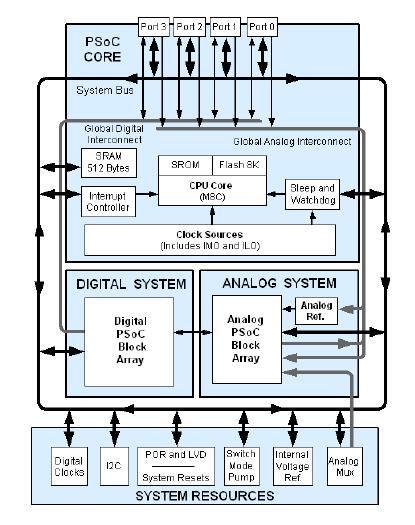

Diagrams
