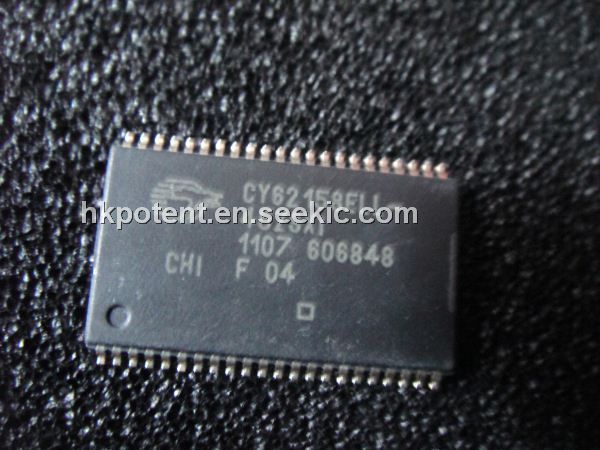

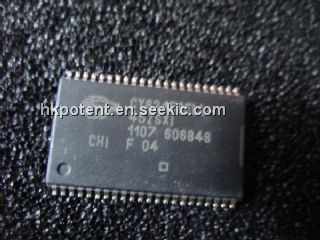

CY62158ELL-45ZSXI

CY62158ELL-45ZSXI, 8-Mbit (1024K x 8) Static RAM, 45ns, 2.20V to 3.60V, 1.8mA, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.00 / Piece
501 ~ 1000 :	1.00 / Piece

PartNumber:: CY62158ELL-45ZSXI

Brand:: Cypress Semiconductor - Cypress | Pack: TSOP | D/C: 11+

Availability:: Supply Ability: 200/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-25

From Other Seller

Part Number:CY62158ELL-45ZSXI
US $1.00 - 3.00
Quantity:

piece

Product Summary

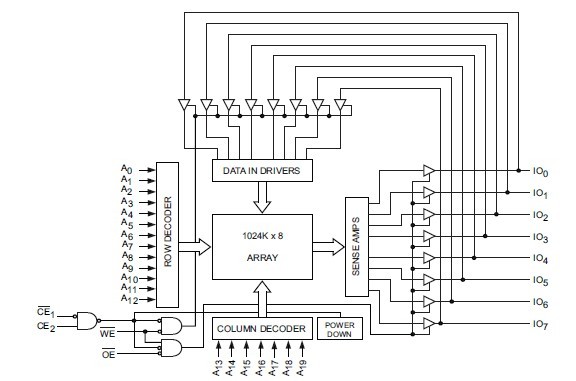

The CY62158ELL-45ZSXI is a high performance CMOS static RAM organized as 1024K words by 8 bits. This device features advanced circuit design to provide ultra low active current. CY62158ELL-45ZSXI is ideal for providing More Battery Life(MoBL in portable applications such as cellular telephones. The device also has an automatic power down feature that significantly reduces power consumption. Placing the device into standby mode reduces power consumption significantly when deselected (CE1 HIGH or CE2 LOW). The eight input and output pins (IO0 through IO7) are placed in a high impedance state when the CY62158ELL-45ZSXI is deselected (CE1 HIGH or CE2 LOW), the outputs are disabled (OE HIGH), or a write operation is in progress (CE1 LOW and CE2 HIGH and WE LOW).

Parametrics

CY62158ELL-45ZSXI absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -55℃ to +125℃; (3)Supply Voltage to Ground Potential: -0.3V to VCC(max) + 0.3V; (4)DC Voltage Applied to Outputs in High-Z State: -0.3V to VCC(max) + 0.3V; (5)DC Input Voltage: -0.3V to VCC(max) + 0.3V.

Features

CY62158ELL-45ZSXI features: (1)Very high speed: 45 ns; (2)Wide voltage range: 2.20V-3.60V; (3)Pin compatible with CY62158DV30; (4)Ultra low standby power-Typical standby current: 2 μA; Maximum standby current: 8 μA; (5)Ultra low active power-Typical active current: 1.8 mA @ f = 1 MHz; (6)Easy memory expansion with CE1, CE2, and OE features; (7)Automatic power down when deselected; (8)CMOS for optimum speed/power; (9)Offered in Pb-free 48-ball VFBGA, 44-pin TSOP II and 48-pin TSOP I packages.
