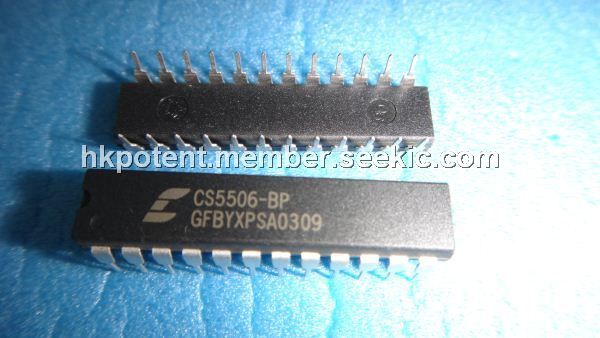

CS5506-BP

CS5506-BP, low power CMOS A/D converter, DIP, -0.3V to +12V, ±10mA, 1.7mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~20.00

PartNumber:: CS5506-BP

Brand:: Cirrus Logic - Cirrus | Pack: DIP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Judy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-11

From Other Seller

Part Number:CS5506-BP
US $2.00 - 20.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

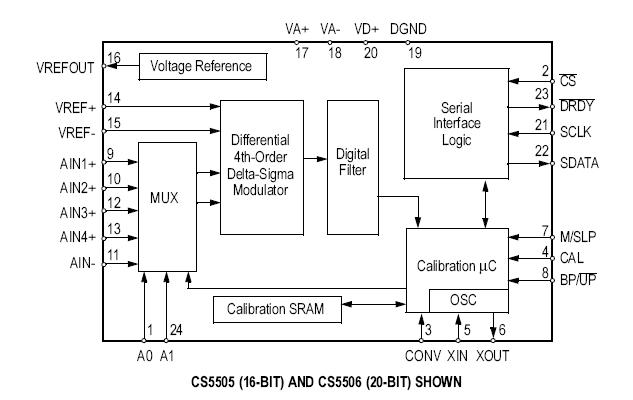

The CS5506-BP is a low power CMOS A/D converter which is ideal for measuring low-frequency signals representing physical, chemical, and biological processes. The CS5506-BP has four pseudo-differential analog input channels. The CS5506-BP has a 20-bit output word. It sample upon command up to 100Sps. The on-chip digital filter offers superior line rejection at 50 and 60 Hz when the device is operated from a 32.768 kHz clock (output word rate = 20Sps). The CS5506-BP includes on-chip self-calibration circuitry which can be initiated at any time or temperature to ensure minimum offset and full-scale errors.

Parametrics

CS5506-BP absolute maximum ratings: (1)DC Power Supplies: Digital Ground (Note 22) DGND: -0.3V to (VD+)-0.3V; (2)Positive Digital (Note 23) VD+: -0.3V to 6.0 or VA+ V; (3)Positive Analog VA+: -0.3V to 12.0V; (4)Negative Analog VA-: +0.3V to -6.0V; (5)Input Current, Any Pin Except Supplies (Notes 24, 25) Iin: ±10mA; (6)Analog Input Voltage AIN and VREF pins VINA: (VA-)-0.3 to (VA+)+0.3V; (7)Digital Input Voltage VIND: -0.3 to (VD+)+0.3V; (8)Ambient Operating Temperature TA: -55 to 125℃; (9)Storage Temperature Tstg: -65 to 150℃.

Features

CS5506-BP features: (1)Very Low Power Consumption; (2)Single supply +5 V operation: 1.7mW; (3)Dual supply ±5 V operation: 3.2mW; (4)Offers superior performance to VFCs and multi-slope integrating ADCs; (5)Differential Inputs; (6)Single Channel (CS5507/8) and Four-Channel; (7)(CS5505/6) pseudo-differential versions; (8)Either 5 V or 3.3 V Digital Interface; (9)Linearity Error: ±0.0015% FS (16-bit CS5505/7), ±0.0007% FS (20-bit CS5506/8); (10)Output update rates up to 100Sps; (11)Flexible Serial Port; (12)Pin-Selectable Unipolar/Bipolar Ranges.
