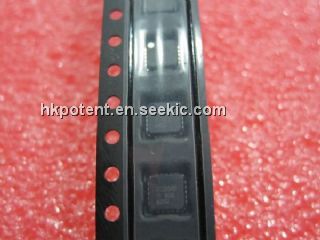

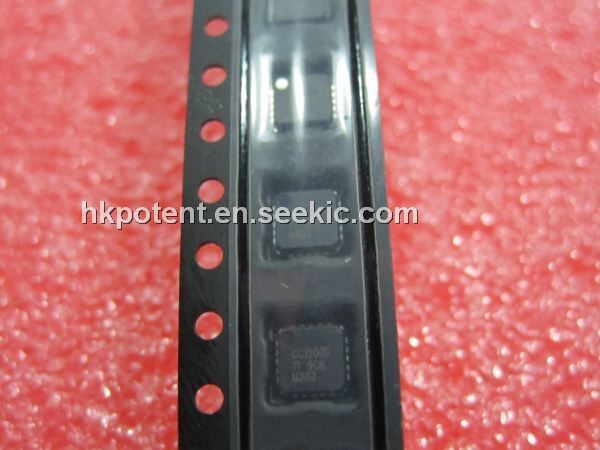

CC1100ERTKR

CC1100ERTKR, Sub-GHz high performance radio transceiver, QFN, -0.3V to 3.9V, 10dBm, 750V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.00 / Piece
501 ~ 1000 :	1.00 / Piece

PartNumber:: CC1100ERTKR

Brand:: Texas Instruments - TI | Pack: QFN | D/C: 08+

Availability:: Supply Ability: 200/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-25

From Other Seller

Part Number:CC1100ERTKR
US $1.00 - 3.00
Quantity:

piece

Product Summary

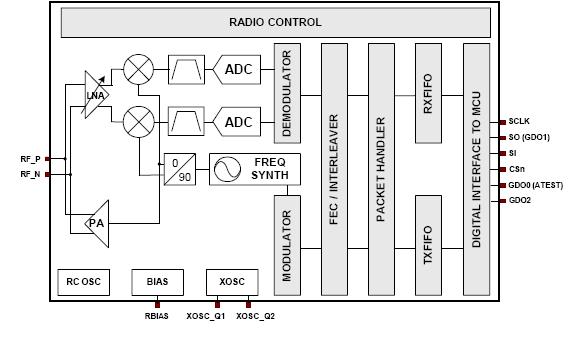

The CC1100ERTKR is a Sub-GHz high performance radio transceiver designed for very low power RF applications. It is intended for the Industrial, Scientific and Medical (ISM) and Short Range Device (SRD) frequency bands at 470-510 MHz and 950-960 MHz. The CC1100ERTKR is especially suited for wireless applications targeted at the Japanese ARIB STD-T96 and the Chinese Short Range Device Regulations at 470-510 MHz. The applications of the CC1100ERTKR include Ultra low-power wireless applications operating in the 470/950 MHz ISM/SRD bands, Wireless sensor networks, Home and building automation, Advanced Metering Infrastructure (AMI), Wireless metering, Wireless alarm and security systems.

Parametrics

CC1100ERTKR absolute maximum ratings: (1)Supply voltage: -0.3 to 3.9V; (2)Voltage on any digital pin: -0.3 to VDD + 0.3V, max 3.9V; (3)Voltage on the pins RF_P, RF_N, and DCOUPL: -0.3 to 2.0V; (4)Voltage ramp-up rate: 120kV/s; (5)Input RF level: +10dBm; (6)Storage temperature range: -50 to 150℃; (7)Solder reflow temperature 260℃; (8)ESD: 750V.

Features

CC1100ERTKR features: (1)Few external components; Completely onchip frequency synthesizer, no external filters or RF switch needed; (2)Green package: RoHS compliant and no antimony or bromine; (3)Small size (QFN 4x4 mm package, 20 pins); (4)Suited for systems targeting compliance with ARIB STD-T96; (5)Suited for systems targeting compliance with the Chinese Short Range Device Regulations at 470-510 MHz; (6)Support for asynchronous and synchronous serial receive/transmit mode for backwards compatibility with existing radio communication protocols.
