Product Summary

The BCM5389KFBG is an 8-GE port switch with integrated SerDes. The BCM5389KFBG is is a highly integrated solution ideally suited for standalone Gigabit Ethernet switches and Gigabit Ethernet control plane and backplane applications. The BCM5389KFBG combines all the functions of a high-speed switch system, including packet buffer, SerDes, media access controllers, address management, and a non-blocking switch fabric into a single 0.13μm CMOS device.

Features

BCM5389KFBG features: (1)Eighth-generation switch on a chip; (2)Integrates; (3)Classifies packets using four 802.1p QoS or DiffServ priority; (4)queues; (5)VLAN 4k 802.1Q or port-based support; (6)Supports up to 4k unicast MAC addresses; (7)Supports MAC-based port aggregation (trunking); (8)Flow control; (9)Full-duplex (802.3x) and half-duplex options support; (10)Supports automatic address learning and aging; (11)Support for Spanning Tree and Rapid Spanning Tree; (12)Low power 0.13μm 1.2V CMOS core: ＜1.5W Pd; (13)Fanless operation support; (14)Port-based rate control feature with 64kbps granularity; (15)256-pin FBGA package (small form factor 17 mm x 17 mm).

Diagrams

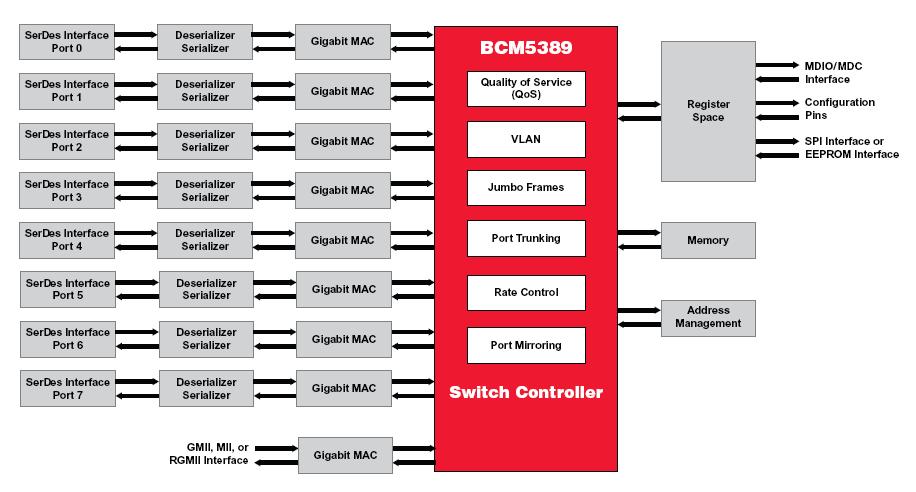

BCM5389KFBG block diagram
