Product Summary
The ARC772-B is an Intel Core2 Duo Processor GS45 COM-Express Basic Module.
Parametrics
ARC772-B absolute maximum ratings: (1)SATA: 3 x SATAII (1 SATA port used for 2G onboard flash); (2)SSD: 2 GB SSD Flash on board; (3)USB: 8 x USB 2.0 ports; (4)Audio: High definition audio interface; (5)GPIO: 8-bit GPIO; (6)Power Type: ATX, AT; (7)Power Supply Voltage: +12 V and +5 VSB for ATX, +12V for AT; (8)Power Consumption (Typical): (1 GB DDR3 1066) SP9300: +12V @ 0.66A; (9)Power Consumption (Max. test in HTC): (1 GB DDR3 1066) SP9300: +12V @ 2.1A; (10)Operating Temperature: 0 ~ 60℃ (32 ~ 140° F); (11)Operating Humidity: 0% ~ 90% relative humidity, non-condensing.
Features
ARC772-B features: (1)Embedded Intel?Core?Duo/Celeron?M processor; (2)Intel GMA X4500 Gen 5 DX10, HW support for H.264, VC-1 and MPEG2; (3)Supports 2 DDR3 SODIMM up to 8 GB; (4)Supports PCIe x16, 5 PCIe x1, 4 PCI, LPC, 3 SATAII, 8 USB2.0; (5)Supports embedded software APIs and Utilities.

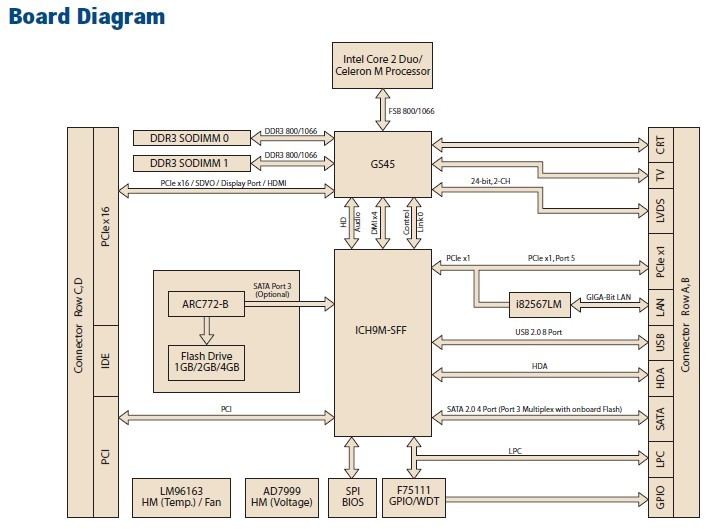

Diagrams
