Product Summary

The ADSP-TS201SABPZ060 TigerSHARC processor is an ultrahigh performance, static superscalar processor optimized for large signal processing tasks and communications infrastructure. The ADSP-TS201SABPZ060 combines very wide memory widths with dual computation blocks—supporting floating-point (IEEE 32-bit and extended precision 40-bit) and fixed-point (8-, 16-, 32-, and 64-bit) processing to set a new standard of performance for digital signal processors. The ADSP-TS201SABPZ060 TigerSHARC static superscalar architecture lets the DSP execute up to four instructions each cycle, performing 24 fixed-point (16-bit) operations or six floating-point operations.

Parametrics

ADSP-TS201SABPZ060 absolute maximum ratings: (1)Internal (Core) Supply Voltage (VDD):–0.3V to +1.4V; (2)Analog (PLL) Supply Voltage (VDD_A):–0.3V to +1.4V; (3)External (I/O) Supply Voltage (VDD_IO):–0.3V to +3.5V; (4)External (DRAM) Supply Voltage (VDD_DRAM):–0.3V to +2.1V; (5)Input Voltage:–0.63V to +3.93V; (6)Output Voltage Swing:–0.5V to VDD_IO+0.5 V; (7)Storage Temperature Range:–65℃ to +150℃.

Features

ADSP-TS201SABPZ060 features: (1)Up to 600MHz, 1.67 ns instruction cycle rate; (2)24M bits of internal—on-chip—DRAM memory; (3)25 mm × 25 mm (576-ball) thermally enhanced ball grid array package; (4)Dual-computation blocks—each containing an ALU, a multiplier, a shifter, a register file, and a communications logic unit (CLU); (5)Dual-integer ALUs, providing data addressing and pointer manipulation; (6)Integrated I/O includes 14-channel DMA controller, external port, four link ports, SDRAM controller, programmable flag pins, two timers, and timer expired pin for system integration; (7)1149.1 IEEE-compliant JTAG test access port for on-chip emulation; (8)Single-precision IEEE 32-bit and extended-precision 40bit floating-point data formats and 8-, 16-, 32-, and 64-bit fixed-point data formats.

Diagrams

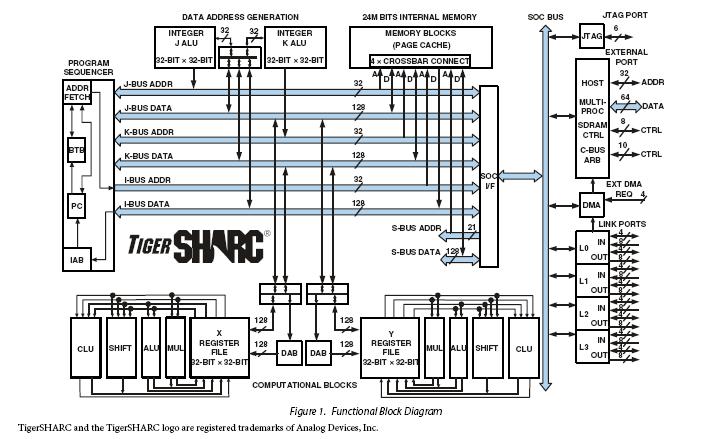

ADSP-TS201SABPZ060 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADSP-TS201SABPZ060
ADSP-TS201SABPZ060

IC PROCESSOR 600MHZ 576BGA
Data Sheet
0-1: $202.28
1-10: $199.78
