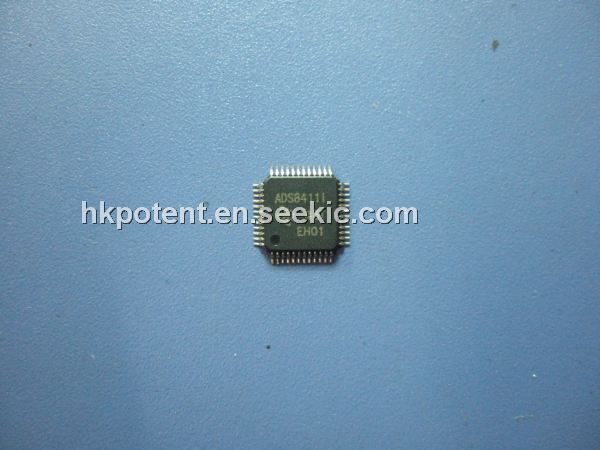

ADS8411I

ADS8411I, sampling analog-to-digital converter, TQFP, -0.3 V to 7 V, 38mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.00 / Piece
501 ~ 1000 :	1.00 / Piece

PartNumber:: ADS8411I

Brand:: Texas Instruments - TI | Pack: TQFP | D/C: 09+

Availability:: Supply Ability: 200/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-25

From Other Seller

Part Number:ADS8411I
US $1.00 - 3.00
Quantity:

piece

Product Summary

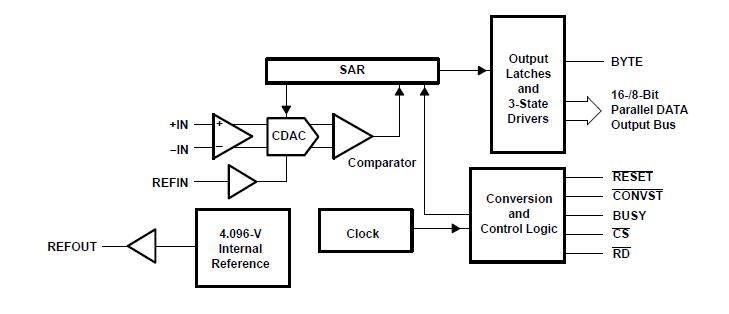

The ADS8411I is a 16-bit, 2 MHz A/D converter with an internal 4.096-V reference. The device includes a 16-bit capacitor-based SAR A/D converter with in herent sample and hold. The ADS8411I offers a full 16-bit interface and an 8-bit option where data is read using two 8-bit read cycles. The ADS8411I has a unipolar single-ended input. It is available in a 48-lead TQFP package and is characterized over the industrial -40℃ to 85℃ temperature range. The applications of the ADS8411I include DWDM, Instrumentation, High-Speed, High-Resolution, Zero Latency Data Acquisition Systems, Transducer Interface, Medical Instruments, Communication.

Parametrics

ADS8411I absolute maximum ratings: (1)Voltage, +IN to AGND: -0.4 V to +VA + 0.1 V; -IN to AGND: -0.4 V to 0.5 V; (2)Voltage range, +VA to AGND: -0.3 V to 7 V; +VBD to BDGND -0.3 V to 7 V; +VA to +VBD: -0.3 V to 2.55 V; (3)Digital input voltage to BDGND: -0.3 V to +VBD + 0.3 V; (4)Digital output voltage to BDGND: -0.3 V to +VBD + 0.3 V; (5)TA Operating free-air temperature range: -40℃ to 85℃; (6)Tstg Storage temperature range: -65℃ to 150℃; (7)Junction temperature (TJ max): 150℃; (8)TQFP package, Power dissipation: (TJMax - TA)/θJA; θJA thermal impedance: 86℃/W; (9)Vapor phase (60 sec): 215℃; (10)Lead temperature, soldering Infrared (15 sec): 220℃.

Features

ADS8411I features: (1)2-MHz Sample Rate; (2)16-Bit NMC Ensured Over Temperature; (3)Zero Latency; (4)Unipolar Single-Ended Input Range: 0 V to Vref; (5)Onboard Reference; (6)Onboard Reference Buffer; (7)High-Speed Parallel Interface; (8)Power Dissipation: 175 mW at 2 MHz Typ; (9)Wide Digital Supply; (10)8-/16-Bit Bus Transfer; (11)48-Pin TQFP Package; (12)ESD Sensitive – HBM Capability of 500 V, 1000 V at All Input Pins.
