Product Summary
The ADR291ERZ is a low noise, micropower precision voltage reference that use an XFET reference circuit. The new XFET architecture offers significant performance improvements over traditional bandgap and Buried Zener-based references. Improvements include: one quarter the voltage noise output of bandgap references operating at the same current, very low and ultralinear temperature drift, low thermal hysteresis and excellent long-term stability. The ADR291ERZ provides stable and accurate output voltages options are 2.5V. The applications of the ADR291ERZ include Portable Instrumentation, Precision Reference for 3V and 5V Systems, A/D and D/A Converter Reference, Solar-Powered Applications, Loop-Current-Powered Instruments.
Parametrics
ADR291ERZ absolute maximum ratings: (1)Supply Voltage: 18V; (2)Output Short-Circuit Duration to GND: Indefinite; (3)Storage Temperature Range SO, RU Package: -65℃ to +150℃; (4)Operating Temperature Range: -40℃ to 125℃; (5)Junction Temperature Range SO, RU Package: -65℃ to 125℃; (6)Lead Temperature (Soldering, 60 sec): 300℃.
Features
ADR291ERZ features: (1)Supply Range: 2.8V to 15V; (2)Supply Current 12μA Max; (3)Low-Noise 6μV, 8μV, 12μV p-p (0.1 Hz–10 Hz); (4)High Output Current 5mA; (5)Temperature Range -40℃ to 125℃; (6)Pin Compatible with REF02/REF19x.

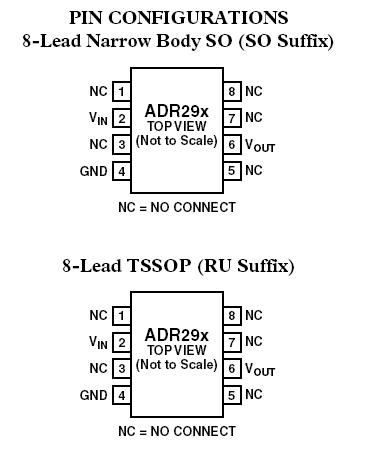

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADR291ERZ |
|
IC VREF SERIES PREC 2.5V 8-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
ADR291ERZ-REEL7 |
|
IC VREF SERIES PREC 2.5V 8-SOIC |
Data Sheet |
|
|
||||||||||||||||
