Product Summary

The ADC0838CCWM is an 8-bit successive approximation A/D converter with a serial I/O and configurable input multiplexers with up to 8 channels. The ADC0838CCWM is configured to comply with the NSC MICROWIRE. serial data exchange standard for easy interface to the COPS. family of processors, and can interface with standard shift registers or μPs. The 2-, 4- or 8-channel multiplexers are software configured for single-ended or differential inputs as well as channel assignment.

Parametrics

ADC0838CCWM absolute maximum ratings: (1)Current into V+ (Note 3): 15 mA; (2)Supply Voltage, VCC (Note 3): 6.5V; (3)Voltage, Logic Inputs: -0.3V to VCC +0.3V; Analog Inputs: -0.3V to VCC +0.3V; (4)Input Current per Pin (Note 4): ±5 mA; Package: ±20 mA; (5)Storage Temperature: -65℃ to +150℃; (6)Package Dissipation at TA=25℃ (Board Mount): 0.8W.

Features

ADC0838CCWM features: (1)NSC MICROWIRE compatible—direct interface to COPS family processors; (2)Easy interface to all microprocessors, or operates “stand-alone”; (3)Operates ratiometrically or with 5 VDC voltage reference; (4)No zero or full-scale adjust required; (5)2-, 4- or 8-channel multiplexer options with address logic; (6)Shunt regulator allows operation with high voltage supplies; (7)0V to 5V input range with single 5V power supply; (8)Remote operation with serial digital data link; (9)TTL/MOS input/output compatible; (10)0.3" standard width, 8-, 14- or 20-pin DIP package; (11)20 Pin Molded Chip Carrier Package (ADC0838 only); (12)Surface-Mount Package.

Diagrams

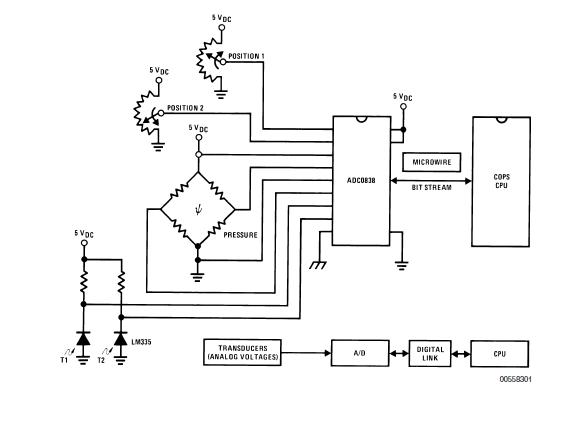

ADC0838CCWM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADC0838CCWM
ADC0838CCWM

National Semiconductor (TI)

ADC (A/D Converters)

Data Sheet

0-324: $1.31
324-504: $1.13
504-1008: $0.86
1008-2520: $0.80
ADC0838CCWM/NOPB
ADC0838CCWM/NOPB

National Semiconductor (TI)

ADC (A/D Converters) 8B SERIAL I/O ADC

Data Sheet

0-1: $1.85
1-25: $1.49
25-100: $1.34
100-250: $1.19
ADC0838CCWMX/NOPB
ADC0838CCWMX/NOPB

National Semiconductor (TI)

ADC (A/D Converters)

Data Sheet

0-1: $2.09
1-25: $1.61
25-100: $1.46
100-250: $1.31
ADC0838CCWMX
ADC0838CCWMX

National Semiconductor (TI)

ADC (A/D Converters)

Data Sheet

0-1000: $0.86
1000-3000: $0.80
3000-5000: $0.77
