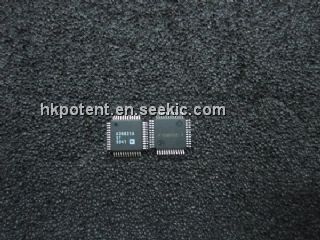

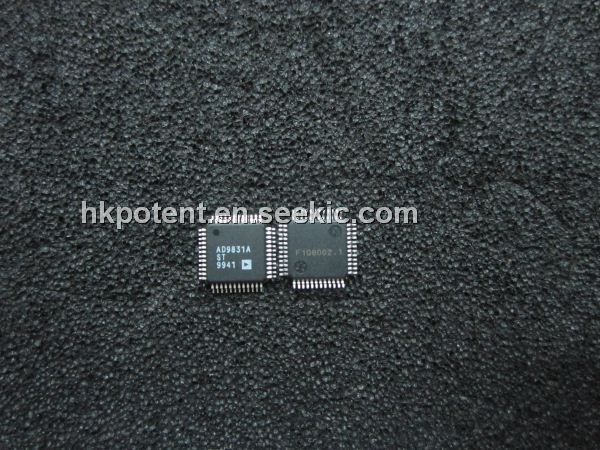

AD9831AST

AD9831AST, CMOS Complete DDS, QFP, -0.3 V to +7 V, 25 MHz, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.00 / Piece
501 ~ 1000 :	1.00 / Piece

PartNumber:: AD9831AST

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 05+

Availability:: Supply Ability: 200/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-25

From Other Seller

Part Number:AD9831AST
US $1.00 - 3.00
Quantity:

piece

Product Summary

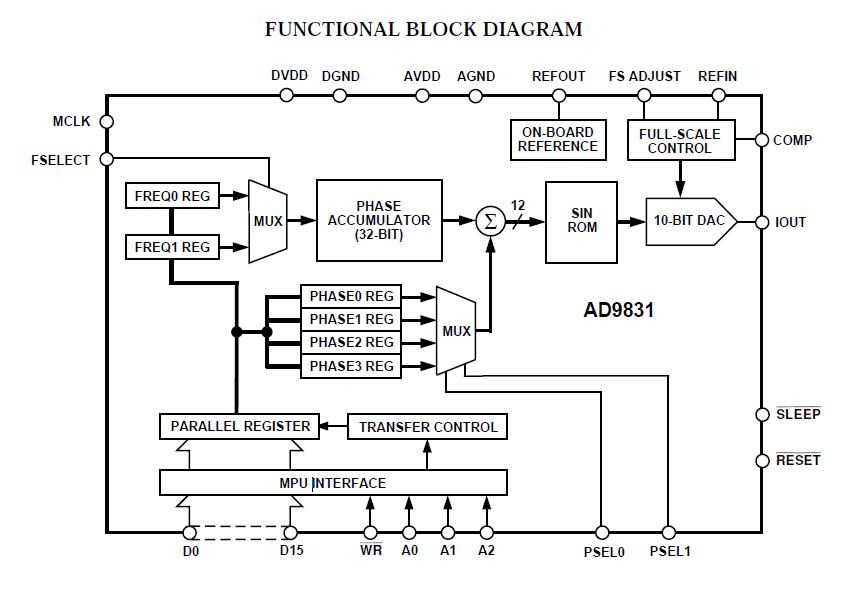

The AD9831AST is a CMOS Complete DDS. This DDS device is a numerically controlled oscillator employing a phase accumulator, a sine look-up table and a 10-bit D/A converter integrated on a single CMOS chip. Modulation capabilities are provided for phase modulation and frequency modulation. Clock rates up to 25 MHz are supported. Frequency accuracy can be controlled to one part in 4 billion. Modulation is effected by loading registers through the parallel microprocessor interface. The applications of the AD9831AST include DDS Tuning, Digital Demodulation.

Parametrics

AD9831AST absolute maximum ratings: (1)AVDD to AGND: -0.3 V to +7 V; (2)DVDD to DGND: -0.3 V to +7 V; (3)AVDD to DVDD: -0.3 V to +0.3 V; (4)AGND to DGND: -0.3 V to +0.3 V; (5)Digital I/O Voltage to DGND: -0.3 V to DVDD + 0.3 V; (6)Analog I/O Voltage to AGND: -0.3 V to AVDD + 0.3 V; (7)Operating Temperature Range, Industrial (A Version): -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Maximum Junction Temperature: +150℃; (10)TQFP θJA Thermal Impedance: 75℃/W; (11)Lead Temperature, Soldering; (12)Vapor Phase (60 sec): +215℃; Infrared (15 sec): +220℃; (13)ESD Rating: >4500 V.

Features

AD9831AST features: (1)3 V/5 V Power Supply; (2)25 MHz Speed; (3)On-Chip SINE Look-Up Table; (4)On-Chip 10-Bit DAC; (5)Parallel Loading; (6)Powerdown Option; (7)72 dB SFDR; (8)125 mW (5 V) Power Consumption; (9)40 mW (3 V) Power Consumption; (10)48-Pin TQFP.
