Product Summary

The AD9696TQ is an ultrafast TTL-compatible voltage comparator. It is able to achieve propagation delays previously possible only in high performance ECL devices. The AD9696TQ is a dual comparator with equally high performance ideal for critical timing circuits in such applications as ATE, communications receivers and test instruments. The applications of the AD9696TQ include High Speed Line Receivers, Peak Detectors, Window Comparators, High Speed Triggers, Ultrafast Pulse Width Discriminators.

Parametrics

AD9696TQ absolute maximum ratings: (1)Supply Voltage (+VS/–VS): +7 V/–7 V; (2)Input Voltage Range: ±5 V; (3)Differential Input Voltage: 5.4 V; (4)Latch Enable Voltage:–0.5 V to +VS; (5)Output Current (Continuous): 20 mA; (6)Power Dissipation: 600 mW; (7)Operating Temperature Range: 0 to +70℃; (8)Storage Temperature Range: –65 to +150℃; (9)Junction Temperature: +175℃; (10)Lead Soldering Temperature (10 sec): +300℃.

Features

AD9696TQ features: (1)4.5 ns Propagation Delay; (2)200 ps Maximum Propagation Delay Dispersion; (3)Single +5 V or 65 V Supply Operation; (4)Complementary Matched TTL Outputs.

Diagrams

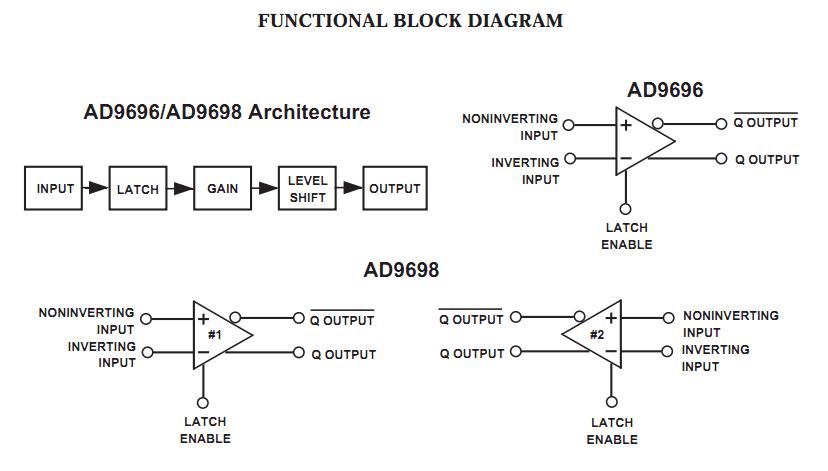

AD9696TQ block diagram
