Product Summary

The AD8210YRZ is a single-supply difference amplifier ideal for amplifying small differential voltages in the presence of large common-mode voltages. The operating input common-mode voltage range extends from -2 V to +65 V. The typical supply voltage is 5V. The AD8210YRZ is offered in a SOIC package. The operating temperature range is -40℃ to +125℃. The applications of the AD8210YRZ include Current sensing, Motor controls, Transmission controls, Diesel injection controls, Engine management, Suspension controls, Vehicle dynamic controls, DC-to-DC converters.

Parametrics

AD8210YRZ absolute maximum ratings: (1)Supply Voltage: 12.5 V; (2)Continuous Input Voltage (VCM): -5 V to +68 V; (3)Reverse Supply Voltage: 0.3 V; (4)ESD Rating HBM (Human Body Model): ±4000 V; (5)CDM (Charged Device Model): ±1000 V; (6)Operating Temperature Range: -40℃ to +125℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Output Short-Circuit Duration: Indefinite.

Features

AD8210YRZ features: (1)±4000 V HBM ESD; (2)High common-mode voltage range; (3)-2 V to +65 V operating; (4)-5 V to +68 V survival; (5)Buffered output voltage; (6)5 mA output drive capability; (7)Wide operating temperature range: -40℃ to +125℃; (8)Ratiometric half-scale output offset; (9)Excellent ac and dc performance; (10)3μV/℃ typical offset drift; (11)10 ppm/℃ typical gain drift; (12)120 db typical CMRR at dc; (13)80 db typical CMRR at 100 kHz; (14)Available in 8-lead SOIC.

Diagrams

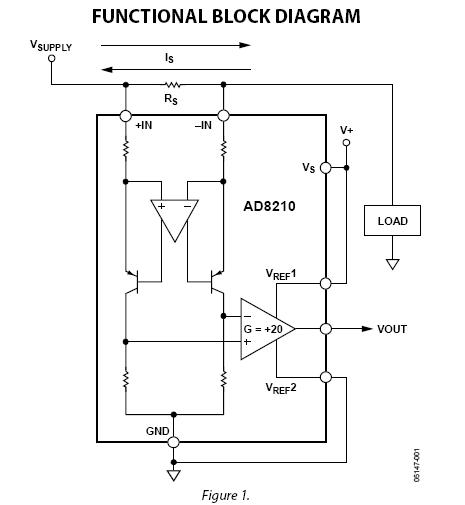

AD8210YRZ block diagram
