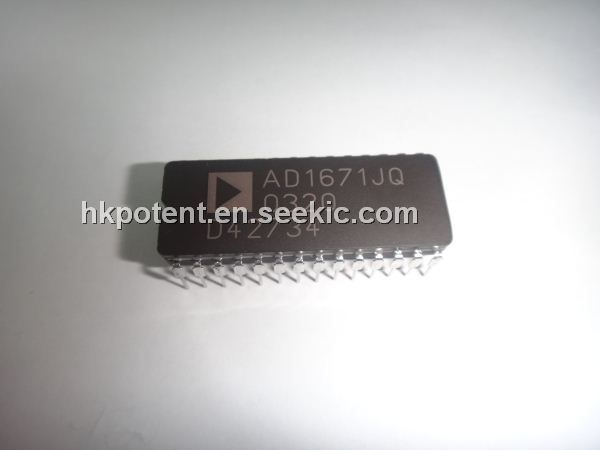

AD1671JQ

AD1671JQ, Complete 12-Bit Monolithic A/D Converter, CDIP, -0 5 +6.5 V, 1.25 MHz, 570 mW, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.00 / Piece
501 ~ 1000 :	1.00 / Piece

PartNumber:: AD1671JQ

Brand:: Analog Devices - ADI | Pack: CDIP | D/C: 08+

Availability:: Supply Ability: 200/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-25

From Other Seller

Part Number:AD1671JQ
US $1.00 - 3.00
Quantity:

piece

Product Summary

The AD1671JQ is a monolithic 12-bit, 1.25 MSPS analog-todigital converter with an on-board, high performance sampleand-hold amplifier (SHA) and voltage reference. The AD1671JQ guarantees no missing codes over the full operating temperature range. The combination of a merged high speed bipolar/CMOS process and a novel architecture results in a combination of speed and power consumption far superior to previously available hybrid implementations. Additionally, the greater reliability of monolithic construction offers improved system reliability and lower costs than hybrid designs.

Parametrics

AD1671JQ absolute maximum ratings: (1)VCC, ACOM: -0 5 +6.5 Volts; (2)VEE, ACOM: -6.5 +0.5 Volts; (3)VLOGIC, DCOM: -0.5 +6.5 Volts; (4)ACOM, DCOM: -1.0 +1.0 Volts; (5)VCC, VLOGIC: -6.5 +6.5 Volts; (6)ENCODE, DCOM: -0.5 VLOGIC + 0.5 Volts; (7)REF, IN ACOM: -0.5 VCC + 0.5 Volts; (8)AIN, ACOM: -11.0 +11.0 Volts; (9)BPO/UPO, ACOM: -0.5 VCC + 0.5 Volts; (10)Junction Temperature: +150℃; (11)Storage Temperature: -65 to +150℃; (12)Lead Temperature (10 sec): +300℃.

Features

AD1671JQ features: (1)Conversion Time: 800 ns; (2)1.25 MHz Throughput Rate; (3)Complete: On-Chip Sample-and-Hold Amplifier and Voltage Reference; (4)Low Power Dissipation: 570 mW; (5)No Missing Codes Guaranteed; (6)Signal-to-Noise Plus Distortion Ratio fIN = 100 kHz: 70 dB; (7)Pin Configurable Input Voltage Ranges; (8)Twos Complement or Offset Binary Output Data; (9)28-Pin DIP and 28-Pin Surface Mount Package; (10)Out of Range Indicator.
