Product Summary

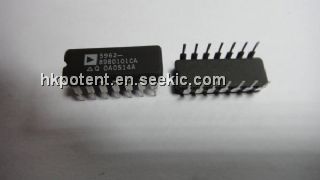

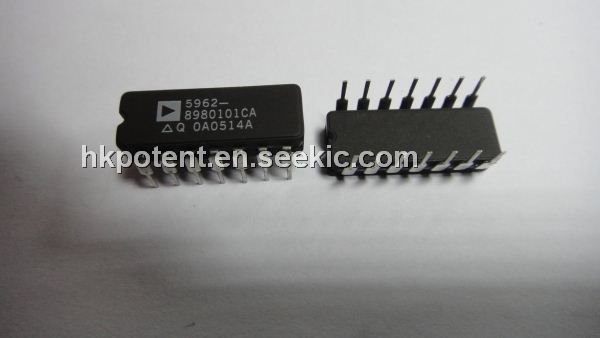

The 5962-8980101CA is a complete monolithic integrated circuit which performs true rms-to-dc conversion. It offers performance which is comparable or superior to that of hybrid or modular units costing much more. The 5962-8980101CA directly computes the true rms value of any complex input waveform containing ac and dc components. It has a crest factor compensation scheme which allows measurements with 1% error at crest factors up to 7. The wide bandwidth of the device extends the measurement capability to 300 kHz with 3 dB error for signal levels above 100 mV. An important feature of the 5962-8980101CA not previously available in rms converters is an auxiliary dB output.
Parametrics
5962-8980101CA absolute maximum ratings: (1)Supply Voltage, Dual Supply: ±18 V; (2)Single Supply: +36 V; (3)Internal Power Dissipation2: 500 mW; (4)Maximum Input Voltage: ±25 V Peak; (5)Buffer Maximum Input Voltage: ±VS; (6)Maximum Input Voltage: ±25 V Peak; (7)Storage Temperature Range: -55℃ to +150℃; (8)Operating Temperature Range: 0℃ to +70℃; (9)Lead Temperature Range (Soldering 60 sec): +300℃; (10)ESD Rating: 1000 V.
Features
5962-8980101CA features: (1)True RMS-to-DC Conversion; (2)Laser-Trimmed to High Accuracy, 0.2% Max Error (AD536AK); 0.5% Max Error (AD536AJ); (3)Wide Response Capability: Computes RMS of AC and DC Signals; 450 kHz Bandwidth: V rms > 100 mV; 2 MHz Bandwidth: V rms > 1 V; Signal Crest Factor of 7 for 1% Error; (4)dB Output with 60 dB Range; (5)Low Power: 1.2 mA Quiescent Current; (6)Single or Dual Supply Operation; (7)Monolithic Integrated Circuit; (8)-55℃ to +125℃ Operation (AD536AS).

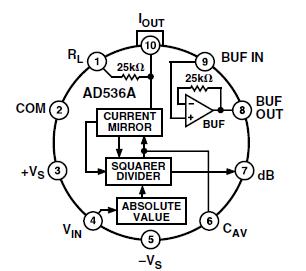

Diagrams
