Product Summary

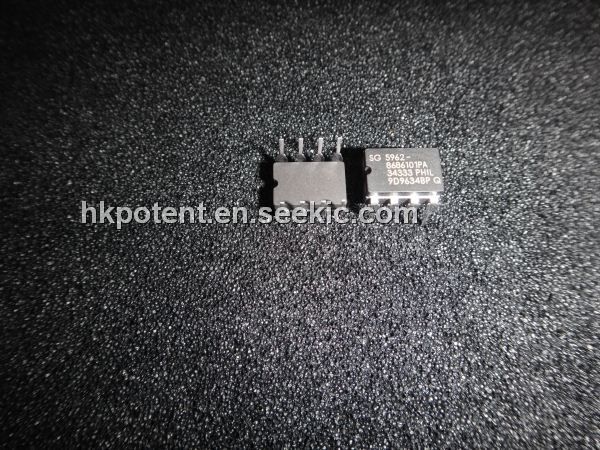

The 5962-8686101PA is a 3-terminal, low cost, temperature compensated, bandgap voltage reference, which provides a fixed 2.5 V output for inputs between 4.5 V and 30 V. The 5962-8686101PA is recommended as a stable reference for all 8-, 10-, and 12-bit D/A converters that require an external reference.
Parametrics
5962-8686101PA absolute maxing ratings: (1)Input Voltage: 40 V; (2)Power Dissipation @ 25℃ Ambient Temperature: 350 mW; (3)Derate above 25℃: 2.8 mW/℃; (4)Lead Temperature (Soldering 10 sec): 300℃; (5)Thermal Resistance Junction-to-Case: 100℃; Junction-to-Ambient 360℃/W.
Features
5962-8686101PA features: (1)Laser-trimmed to high accuracy: 2.500 V ±0.4%; (2)3-terminal device: voltage in/voltage out; (3)Excellent temperature stability: 10 ppm/℃ (AD580M, U); (4)Excellent long-term stability: 250 μV (25 μV/month); (5)Low quiescent current: 1.5 mA maximum; (6)Small, hermetic IC package: TO-52 can; (7)MIL-STD-883 compliant versions available.
Diagrams
