Product Summary

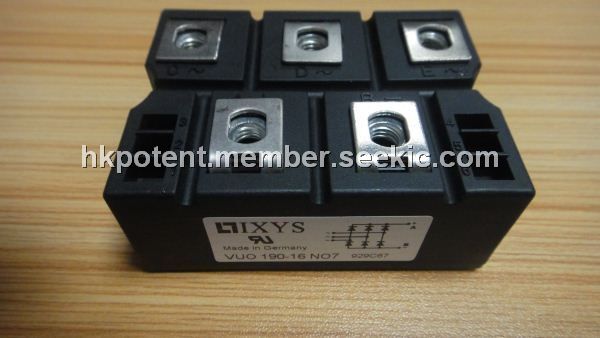

The VUO19016NO7 is a Three Phase Rectifier Bridge. The applications of the VUO19016NO7 include supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies and Field supply for DC motors.
Parametrics
VUO19016NO7 absolute maximum ratings: (1)IdAV: 248 A at TC = 100℃, module; (2)IFSM: 2800 A when TVJ = 45℃; t = 10 ms (50 Hz), sine; 3300 A at VR = 0 t = 8.3 ms (60 Hz), sine; 1600 A at TVJ = TVJM t = 10 ms (50 Hz), sine; 1800 A at VR = 0 t = 8.3 ms (60 Hz), sine; (3)I2t: 39200 A2s at TVJ = 45℃ t = 10 ms (50 Hz), sine; 16200 A2s at VR = 0 t = 8.3 ms (60 Hz), sine; 12800 A2s at TVJ = TVJM t = 10 ms (50 Hz), sine; 13600 A2s at VR = 0 t = 8.3 ms (60 Hz), sine; (4)TVJ: -40 to +150℃; (5)TVJM: 150℃; (6)Tstg: -40 to +125℃; (7)VISOL: 2500 V~ at 50/60 Hz, RMS t = 1 min; 3000 V at IISOL≤ 1mA t = 1 s; (8) Weight: typ. 270 g.
Features
VUO19016NO7 features: (1) Package with screw terminals; (2) Isolation voltage 3000 V; (3) Planar passivated chips; (4)Blocking voltage up to 1800 V; (5)Low forward voltage drop.

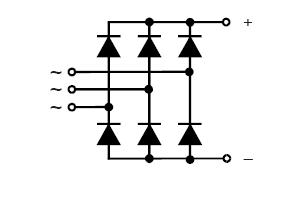

Diagrams
 |
