Product Summary
The TD62781AF is an 8ch high-voltage source driver comprised of eight source current Transistor Array. The driver is specifically designed for fluorescent display applications. Applications include relay, hammer and lamp drivers.
Parametrics
TD62781AF absolute maximum ratings: (1)Supply Voltage, VCC: 60 V; (2)Output Voltage, VOUT: VCC V; (3)Output Current, IOUT: -50 mA / ch; (4)Input Voltage, VIN: 20 V; ; (5)Power Dissipation, AP, PD (Note): 1.47W; AF, PD (Note): 0.96W; (6)Operating Temperature, Topr: -40 to 85℃; (7)Storage Temperature, Tstg: -55to 150℃.
Features
TD62781AF features: (1)High output voltage: VOUT = 60 V (Min); (2)Output current (single output) IOUT = .50 mA / ch (Max); (3)Pull.down resistors / each output; (4)Single supply voltage; (5)Input compatible with various types of logic.

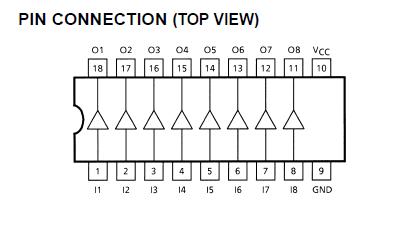

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
TD62781AF |
Other |
Data Sheet |
Negotiable |
|
||||||
