Product Summary

The TA31056P is a Power Chip Resistor. The TA31056P is designed from our thick film on alumina substrate technology. These planar packages yield space saving, 10W/in2 power densities that require over 50% less board space than other radial packages. Convection cooling is maximized by the planar package configuration which dissipates heat well above board level. Ohmite’s power chip resistor has a 125% higher operating temperature range than competitive product of similar design.

Parametrics

TA31056P absolute maximum ratings: (1)Tolerance: ±1% and ±5%; (2)Power Rating: Based on 25℃ free air; (3)Resistance Range: 0.5 ohm to 10M ohm; (4)Maximum Operating Voltage: 350 VAC, 500 VDC through glass; 1000 VAC, 1500 VDC through substrate; (5)ΔR: ±2%, 2000 hours; (6)Derating: 100% @ 25℃ to 0% @ 350℃.

Features

TA31056P features: (1)High-Temp Terminal Construction; (2)Wide Resistance Range; (3)Low Inductance (50nH-100nH); (4)High Power Density; (5)Easy to install. PC-mountable.

Diagrams

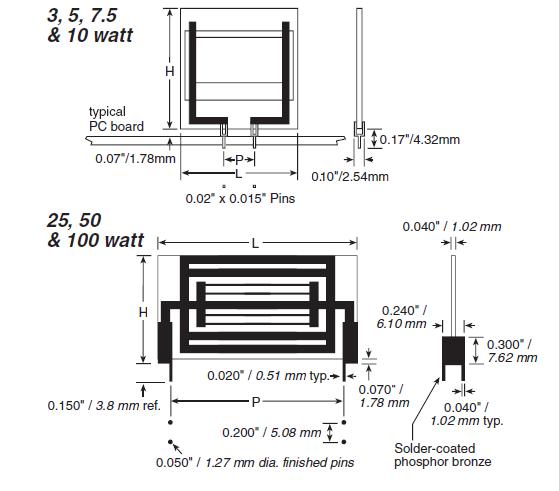

TA31056P block diagram
