Product Summary
The SN54LS377J is an 8-bit register built using advanced Low Power Schottky technology. The SN54LS377J consists of eight D-type flip-flops with a buffered common clock and a buffered common clock enable.
Parametrics
SN54LS377J absolute maximum ratings: (1)VCC Supply Voltage: 4.5V to 5.5V; (2)TA Operating Ambient Temperature Range: -55 to 125℃; (3)IOH Output Current High: 0.4mA; (4)IOL Output Current Low: 4.0mA.
Features
SN54LS377J features: (1)8-Bit High Speed Parallel Registers; (2)Positive Edge-Triggered D-Type Flip Flops; (3)Fully Buffered Common Clock and Enable Inputs; (4)True and Complement Outputs; (5)Input Clamp Diodes Limit High Speed Termination Effects.

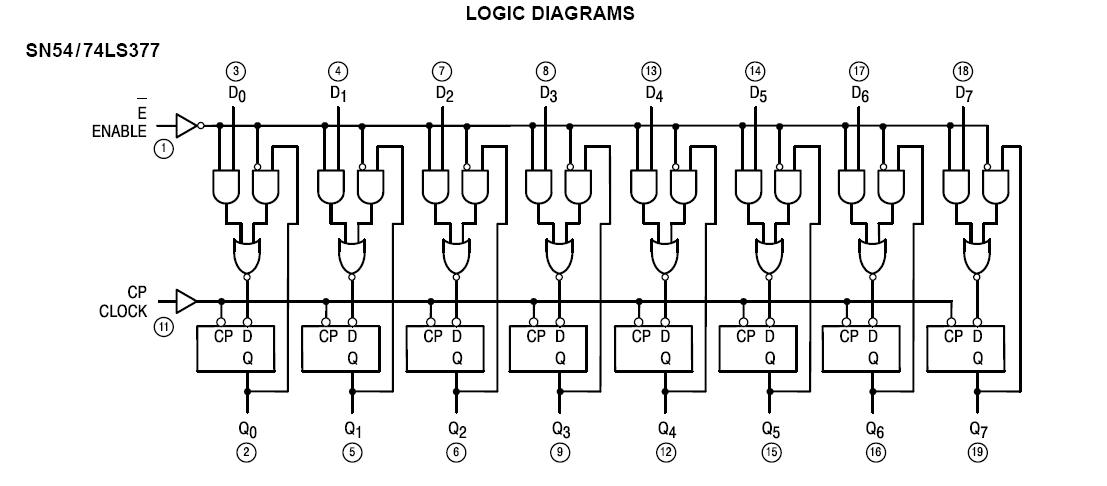

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN54LS377J |
Other |
|
Data Sheet |
Negotiable |
|
||||||
