Product Summary
The SKY77324-12 is a Power Amplifier Module (PAM) designed in a low profile (1.2 mm), compact form factor for quad-band cellular handsets comprising GSM850/900, DCS1800, and PCS1900 operation. The PAM also supports Class 12 General Packet Radio Service (GPRS) multi-slot operation. The module consists of separate GSM850/900 PA and DCS1800/PCS1900 PA blocks, impedance-matching circuitry for 50 Ω input and output impedances, and a Power Amplifier Control (PAC) block with an internal current-sense resistor. The applications of the SKY77324-12 include Quad-band cellular handsets encompassing, Class 4 GSM850/900; Class 1 DCS1800 PCS1900; Class 12 GPRS multi-slot operation.
Parametrics
SKY77324-12 absolute maximum ratings: (1)Input Power (PIN): 15 dBm; (2)Supply Voltage (VCC), Standby, VAPC ≤ 0.3 V, PAC ENABLE ≤ 0.2 V: 7 V; (3)Control Voltage (VAPC): -0.5 VCC_MAX -0.2V; (4)Storage Temperature: -55 to +100℃.
Features
SKY77324-12 features: (1)Low input power range 0 to 6 dBm; (2)High efficiency, GSM850 49%; GSM900 53%; DCS 53%; PCS 53%; (3)Internal ICC sense resistor for PAC; (4)Closed loop iPAC or open loop operation with external PAC circuit; (5)Input/Output matching 50 Ω internal (with DC blocking); (6)22-pin package, Small outline 6 mm x 8 mm; Low profile 1.2 mm maximum; (7)Low APC current 20μA; (8)Gold plated, lead-free contacts.

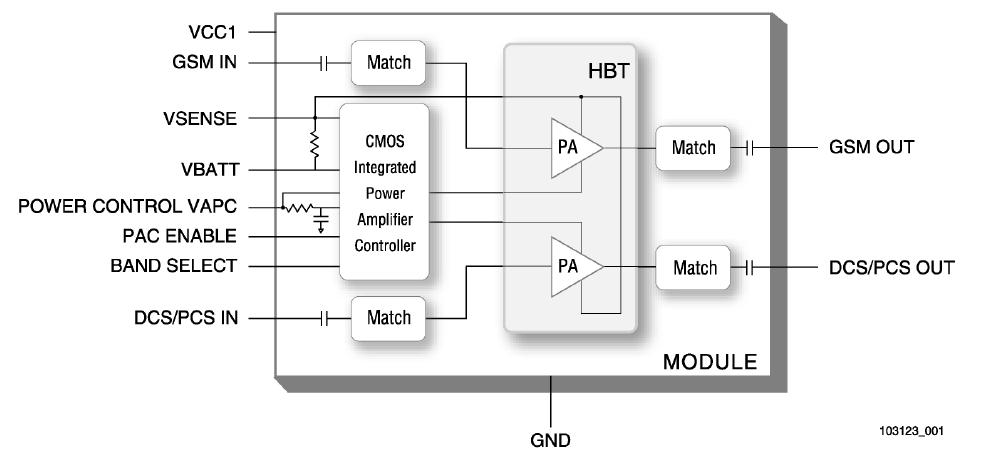

Diagrams
