Product Summary
The OPA541AM is a power operational amplifier capable of operation from power supplies up to ±40V and delivering continuous output currents up to 5A. Internal current limit circuitry can be user-programmed with a single external resistor, protecting the amplifier and load from fault conditions. The OPA541AM is fabricated using a proprietary bipolar/FET process. Its applications include motor driver, servo amplifier, synchro excitation, audio amplifier and programmable power supply.
Parametrics
OPA541AM absolute maximum ratings: (1)Supply Voltage, +VS to –VS: 80V; (2)Output Current: see SOA; (3)Power Dissipation, Interna: 125W; (4)Input Voltage: Differential: ±VS; Common-mode: ±VS; (5)Temperature: Pin solder, 10s: +300℃; Junction: +150℃; (6)Temperature Range: AM, BM SM, Storage: –65℃ to +150℃; Operating (case): –55℃ to +125℃; AP, Storage: –40℃ to +85℃; Operating (case): –25℃ to +85℃.
Features
OPA541AM features: (1)power supplies to ±40V; (2)output current to 10A peak; (3)programmable current limit; (4)industry-standard pin out; (5)FET input; (6)TO-3 and low-cost power plastic packages.

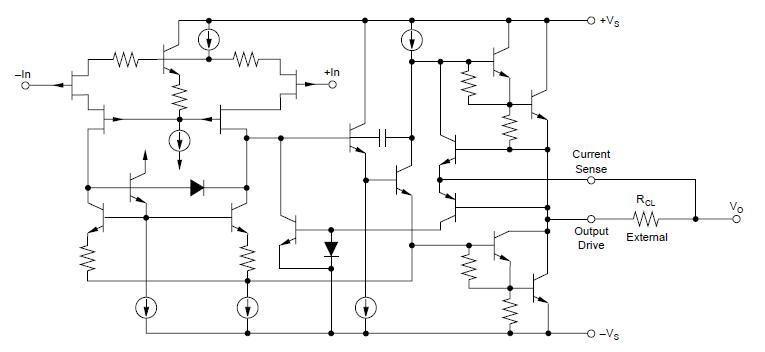

Diagrams
