Product Summary
The M2732AF1 is a 32,768 bit UV erasable and electrically programmable memory EPROM. It is organized as 4,096 words by 8 bits. It is honsed in a 24 pin Window Ceramic Frit-Seal Dual-in-Line package.
Parametrics
M2732AF1 absolute maximum ratings: (1)Ambient Operating Temperature:0℃ to 70℃; (2)Temperature Under Bias grade:–10℃ to 80℃ ; (3)Storage Temperature:–65℃ to 125℃; (4)Input or Output Voltages:–0.6V to 6V; (5)supply Voltage:–0.6V to 6V; (6)Program Supply Voltage:–0.6V to 22V.
Features
M2732AF1 features: (1)fast access time: 200ns; (2)extended temperature range; (3)single 5V supply voltage; (4)low standby current: 35mA max; (5)inputs and outputs TTL compatible; (6)during read and program; (7)completely static.

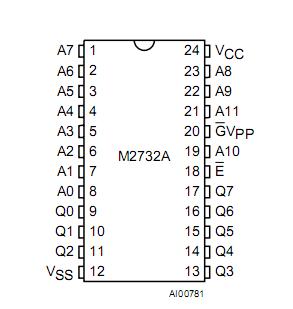

Diagrams
