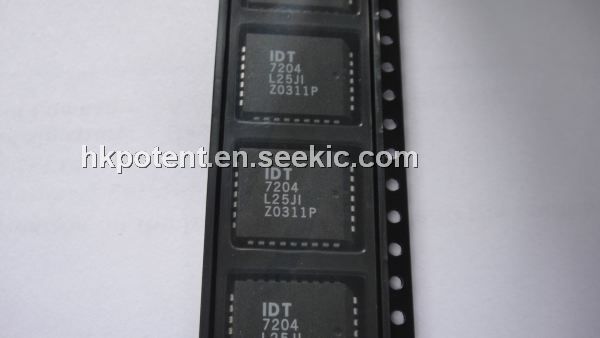

Product Summary

The IDT7204L25JI is a dual-port memory buffer with internal pointers that load and empty data on a firstin/first-out basis. The IDT7204L25JI uses Full and Empty flags to prevent data overflow and underflow and expansion logic to allow for unlimited expansion capability in both word size and depth. Data is toggled in and out of the device through the use of the Write (W) and Read (R) pins. The IDT7204L25JI 9-bit width provides a bit for a control or parity at the user’s option. It also features a Retransmit (RT) capability that allows the read pointer to be reset to its initial position when RT is pulsed LOW. A Half-Full Flag is available in the single device and width expansion modes.

Parametrics

IDT7204L25JI absolute maximum ratings: (1)Terminal Voltage with Respect to GND: –0.5 to + 7.0 V; (2)Operating Temperature: 0 to +70 ℃; (3)Temperature Under Bias: –55 to +125 ℃; (4)Storage Temperature: –55 to + 125 ℃; (5) DC Output Current: 50 mA.

Features

IDT7204L25JI features: (1)First-In/First-Out Dual-Port memory; (2)2048 x 9 organization (IDT7203); (3)4096 x 9 organization (IDT7204); (4)8192 x 9 organization (IDT7205); (5)16384 x 9 organization (IDT7206); (6)High-speed: 12ns access time; (7)Low power consumption: Active: 770mW (max.), Power-down: 44mW (max.); (8)Asynchronous and simultaneous read and write; (9)Fully expandable in both word depth and width; (10)Pin and functionally compatible with IDT720X family; (11)Status Flags: Empty, Half-Full, Full; (12)Retransmit capability; (13)High-performance CMOS technology.

Diagrams

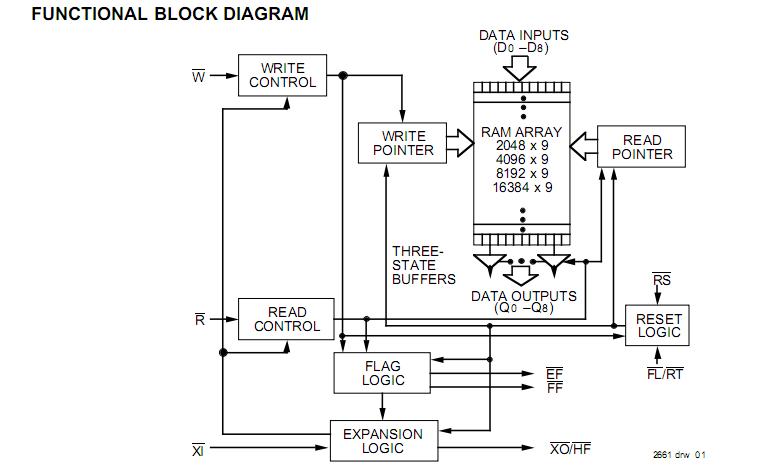

IDT7204L25JI block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

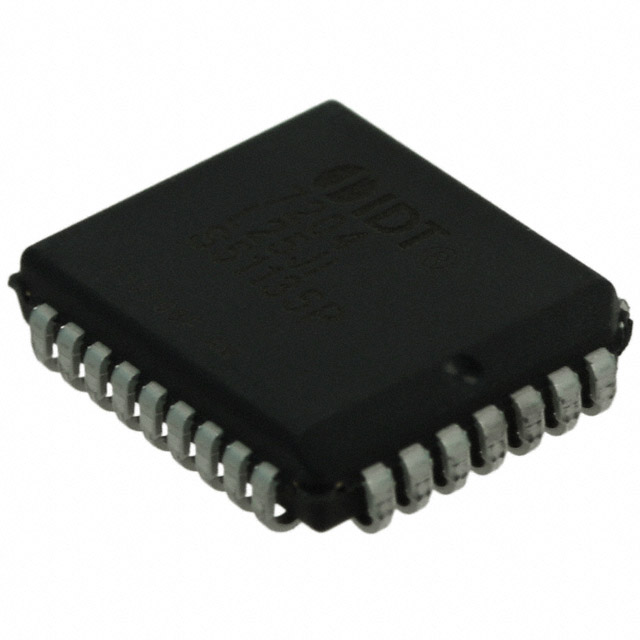

IDT7204L25JI
IDT7204L25JI

IC FIFO 4KX9 25NS 32PLCC
Data Sheet
0-1: $7.61
1-25: $6.40
25-100: $5.88
100-250: $5.36
250-500: $5.01
500-1000: $4.60
1000-2500: $4.41
2500-5000: $4.29
5000-10000: $4.15
IDT7204L25JI8
IDT7204L25JI8

IC FIFO 4KX9 25NS 32PLCC
Data Sheet
0-750: $4.75
