FM31T378-G

FM31T378-G, System Supervisor, Temperature Compensated RTC, SOP, 100V, 1.4μA, 32.768 kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.00 / Piece
501 ~ 1000 :	1.00 / Piece

PartNumber:: FM31T378-G

Brand:: Raltron Electronics Corporation - Raltron | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 200/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-24

From Other Seller

Part Number:FM31T378-G
US $1.00 - 3.00
Quantity:

piece

Product Summary

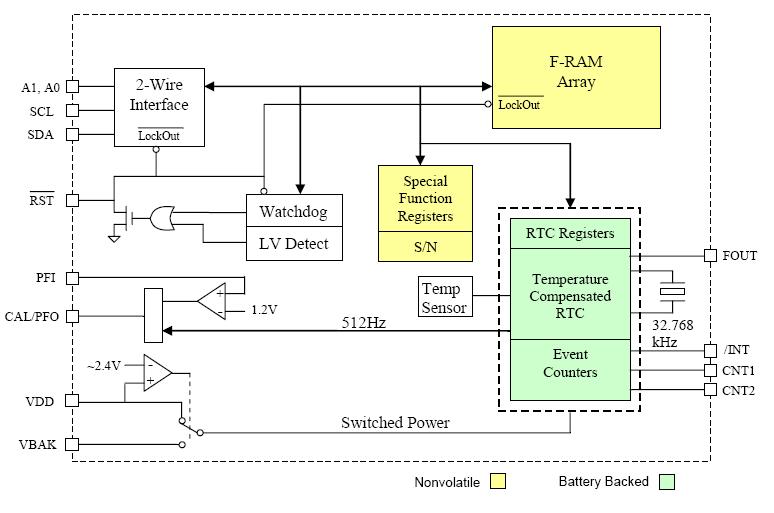

The FM31T378-G is a System Supervisor & Temperature Compensated RTC (TCXO) with Embedded Crystal. The FM31T378-G includes the most commonly needed functions for processor-based systems. Major features include nonvolatile F-RAM memory available in various sizes, temperature-compensated real-time clock with embedded crystal, 32.768kHz clock output, low-VDD reset, watchdog timer, battery backed event counter, event driven interrupt output, lockable 64-bit serial number area, general purpose comparator that can be used for an early power-fail (NMI) interrupt or other purpose, and 2-wire serial interface to a host microcontroller. The family operates from 2.7 to 5.5V.

Parametrics

FM31T378-G absolute maximum ratings: (1)VDD Power Supply Voltage with respect to VSS: -1.0V to +7.0V; (2)VIN Voltage on any signal pin with respect to VSS: -1.0V to +7.0V and VIN ≤ VDD+1.0V; (3)VBAK Backup Supply Voltage: -1.0V to +4.5V; (4)TSTG Storage Temperature: -55℃ to + 125℃; (5)TLEAD Lead Temperature (Soldering, 10 seconds): 260℃; (6)VESD Electrostatic Discharge Voltage Human Body Model (AEC-Q100-002 Rev. E): 2kV; (7)Charged Device Model (AEC-Q100-011 Rev. B): 1.25kV; (8)Machine Model (AEC-Q100-003 Rev. E): 100V; (9)Package Moisture Sensitivity Level: MSL-1.

Features

FM31T378-G features: (1) High Integration Device Replaces Multiple Parts; (2) Ferroelectric Nonvolatile RAM; (3) Real-time Clock/Calendar; (4) Processor Companion; (5)Fast Two-wire Serial Interface; (6)Easy to Use Configurations.
