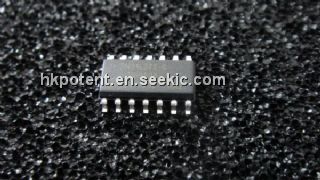

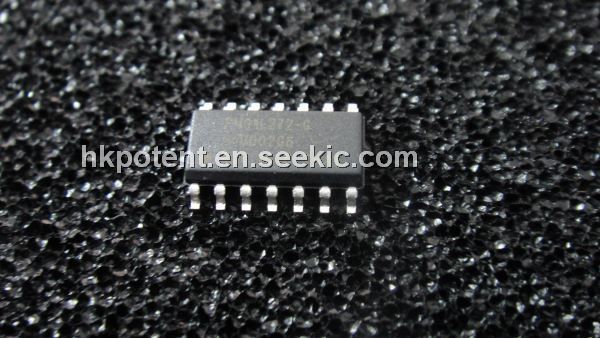

FM31L272-GTR

FM31L272-GTR, 3V, Integrated Processor, SOP14, 1KV, 32.768KHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.00 / Piece
501 ~ 1000 :	1.00 / Piece

PartNumber:: FM31L272-GTR

Brand:: Raltron Electronics Corporation - Raltron | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 200/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-24

From Other Seller

Part Number:FM31L272-GTR
US $1.00 - 3.00
Quantity:

piece

Product Summary

The FM31L272-GTR is an Integrated Processor. It includes the most commonly needed functions for processor-based systems.

Parametrics

FM31L272-GTR absolute maximum ratings: (1)Power Supply Voltage with respect to VSS:-1.0V to +5.0V ; (2)Voltage on any signal pin with respect to VSS:-1.0V to +5.0V and VIN ≤ VDD+1.0V; (3)Backup Supply Voltage:-1.0V to +4.5V ; (4)Storage Temperature:-55℃ to + 125℃ ; (5)Lead Temperature (Soldering, 10 seconds):300℃ ; (6)Electrostatic Discharge Voltage: Human Body Model (JEDEC Std JESD22-A114-B):3kV, Charged Device Model (JEDEC Std JESD22-C101-A):1kV; (7) Package Moisture Sensitivity Level: MSL-1.

Features

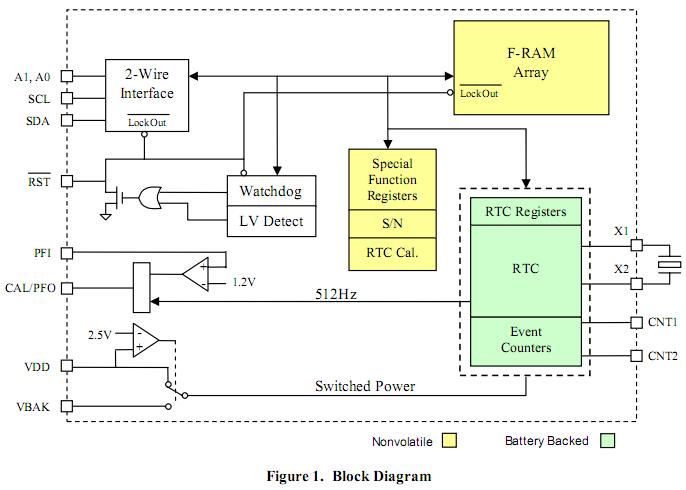

FM31L272-GTR features: (1)Serial Nonvolatile Memory ; (2)Real-time Clock (RTC) ; (3)Low Voltage Reset ; (4)Watchdog Timer ; (5)Early Power-Fail Warning/NMI ; (6)Two 16-bit Event Counters ; (7)Serial Number with Write-lock for Security ; (8)Backup Current under 1μA ; (9)Seconds through Centuries in BCD format ; (10)Tracks Leap Years through 2099 ; (11)Uses Standard 32.768 kHz Crystal (12.5pF) ; (12)Software Calibration ; (13)Supports Battery or Capacitor Backup ; (14)Up to 1 MHz Maximum Bus Frequency ; (15)Supports Legacy Timing for 100 kHz & 400 kHz ; (16)Device Select Pins for up to 4 Memory Devices ; (17)RTC, Supervisor Controlled via 2-wire Interface.
