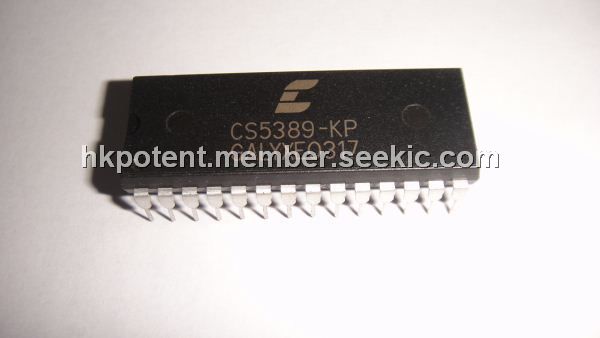

Product Summary
The CS5389KP is a complete analog-to-digital converter for stereo digital audio systems. The CS5389KP performs sampling, analog-to-digital conversion and anti-alias filtering, generating 18-bit values for both left and right inputs in serial form. The output word rate can be up to 50 KHz per channel. The CS5389KP uses 5th-order, delta-sigma modulation with 64X over-sampling followed by digital filtering and decimation, which removes the need for an external anti-alias filter. The ADC uses a differential architecture which provides excellent noise rejection.
Parametrics
CS5389KP absolute maximum ratings: (1)DC Power Supplies: Positive Digital (Note 35) VD+: -0.3V to 6.0V; (2)Negative Digital VD-: 0.3V to -0.6V; (3)Positive Analog VA+: -0.3V to 6.0V; (4)Negative Analog VA-: 0.3V to -0.6V; (5)Input Current, Any Pin Except Supplies (Note 36) Iin: ±10mA; (6)Analog Input Voltage (AIN and VREF pins): VINA (VA-)-0.4 to (VA+)+0.4V; (7)Digital Input Voltage VIND: -0.3 to (VD+)+0.4V; (8)Ambient Operating Temperature TA: -55 to 125℃; (9)Storage Temperature Tstg: -65 to 150℃; (10)Ambient Operating Temperature TA: -55 to 125℃.
Features
CS5389KP features: (1)Complete CMOS stereo A/D System; (2)Delta-Sigma A/D Converters; (3)Digital Anti-Alias Filtering; (4)S/H Circuitry and Voltage Reference; (5)Adjustable System Sampling Rated including 32 KHz, 44.1 KHz and 48 KHz; (6)107 dB Dynamic Range (A-Weighted); (7)Low Noise and Distortion; (8)Internal 64X Over-sampling; (9)Linear Phase Digital Anti-Alias Filtering; (10)Low Power Dissipation: 550mW; (11)Evaluation Board Available.

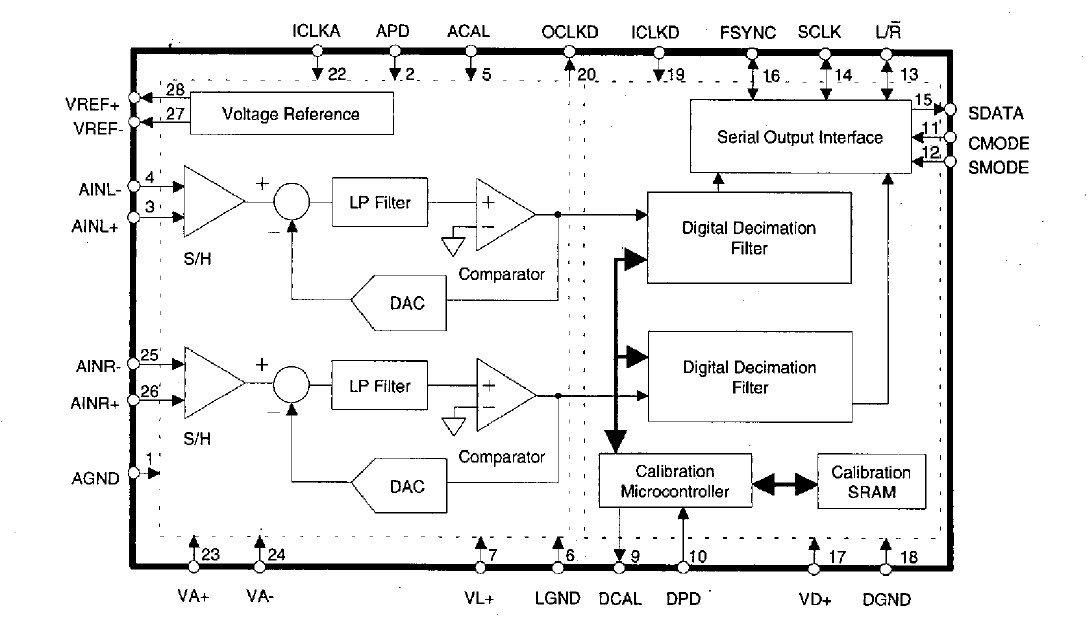

Diagrams
 |
