Product Summary

The AM29F160DB-90EI is a 16Mbit, 5.0 Volt-only Flash memory device organized as 2,097,152 bytes or 1,048,576 words. Data appears on DQ0-DQ7 or DQ0-DQ15 depending on the data width selected. The AM29F160DB-90EI is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for program or erases operations. The AM29F160DB-90EI can also be programmed in standard EPROM programmers.

Parametrics

AM29F160DB-90EI absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied:–55℃ to +125℃; (3)Voltage with Respect to Ground VCC (Note 1):–2.0V to +7.0V; (4)A9, OE#, and RESET# (Note 2): –2.0V to +12.5V; (5)All other pins (Note 1):–0.5V to +7.0V; (6)Output Short Circuit Current (Note 3): 200mA.

Features

AM29F160DB-90EI features: (1)5.0 Volt single power supply operation; (2)High performance: Access times as fast as 70ns; (3)Manufactured on 0.25μm process technology; (4)CFI (Common Flash Interface) compliant; (5)Ultra low power consumption (typical values at 5 MHz); (6)Flexible sector architecture; (7)Top boot or bottom boot configurations available; (8)Minimum 1,000,000 write cycle guarantee per sector; (9)20-year data retention at 125℃; (10)Package options 48-pin TSOP; (11) Compatible with JEDEC standards; (12) Embedded Algorithms; (13) Erase Suspend/Erase Resume; (14) Data# Polling and toggle bits; (15) Unlock Bypass Program command; (16) Ready/Busy# pin (RY/BY#); (17) Hardware reset pin (RESET#); (18) WP# input pin; (19) Program and Erase Performance.

Diagrams

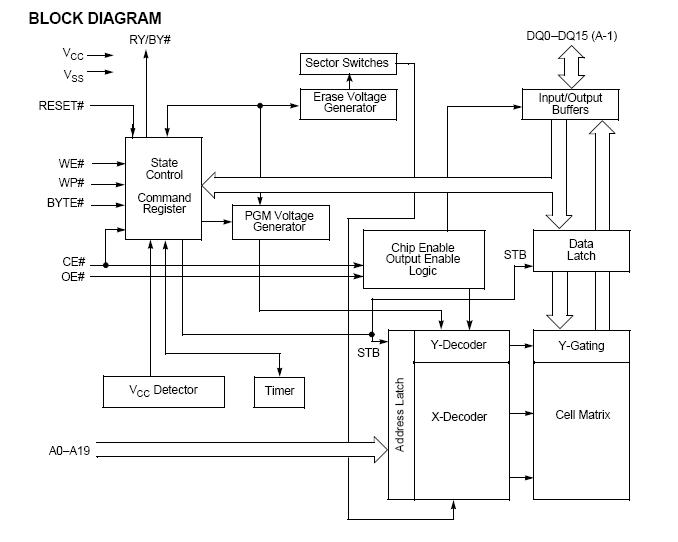

AM29F160DB-90EI block diagram
