AD9212BCPZ-65

Product Summary

The AD9212BCPZ-65 is an octal, 10-bit, 40/65 MSPS analog-to-digital converter (ADC) with an on-chip sample-and-hold circuit that is designed for low cost, low power, small size, and ease of use. The product operates at a conversion rate of up to 65 MSPS and is optimized for outstanding dynamic performance and low power in applications where a small package size is critical. The AD9212BCPZ-65 requires a single 1.8 V power supply and LVPECL-/ CMOS-/LVDS-compatible sample rate clock for full performance operation. No external reference or driver components are required for many applications. The applications of the AD9212BCPZ-65 include Medical imaging and nondestructive ultrasound, Portable ultrasound and digital beam forming systems, Quadrature radio receivers, Diversity radio receivers, Tape drives, Optical networking, Test equipment.

Parametrics

AD9212BCPZ-65 absolute maximum ratings: (1)ELECTRICAL, AVDD, AGND: -0.3 V to +2.0 V; (2)DRVDD, DRGND: -0.3 V to +2.0 V; (3)AGND, DRGND: -0.3 V to +0.3 V; (4)AVDD, DRVDD: -2.0 V to +2.0 V; (5)Digital Outputs (D+, D-, DCO+, DCO-, FCO+, FCO-), DRGND: -0.3 V to +2.0 V; (6)CLK+, CLK-, AGND: -0.3 V to +3.9 V; (7)VIN+, VIN-, AGND: -0.3 V to +2.0 V; (8)SDIO/ODM, AGND: -0.3 V to +2.0 V; (9)PDWN, SCLK/DTP, CSB, AGND: -0.3 V to +3.9 V; (10)REFT, REFB, RBIAS, AGND: -0.3 V to +2.0 V; (11)VREF, SENSE, AGND: -0.3 V to +2.0 V.

Features

AD9212BCPZ-65 features: (1)Eight ADCs integrated into 1 package; (2)100 mW ADC power per channel at 65 MSPS; (3)SNR = 60.8 dB (to Nyquist); (4)Excellent linearity, DNL = ±0.3 LSB (typical); INL = ±0.4 LSB (typical); (5)Serial LVDS (ANSI-644, default); (6)Low power reduced signal option, IEEE 1596.3 similar; (7)Data and frame clock outputs; (8)325 MHz, full power analog bandwidth; (9)2 V p-p input voltage range; (10)1.8 V supply operation; (11)Serial port control, Full-chip and individual-channel power-down modes; Flexible bit orientation; Built-in and custom digital test pattern generation; Programmable clock and data alignment; Programmable output resolution; Standby mode.

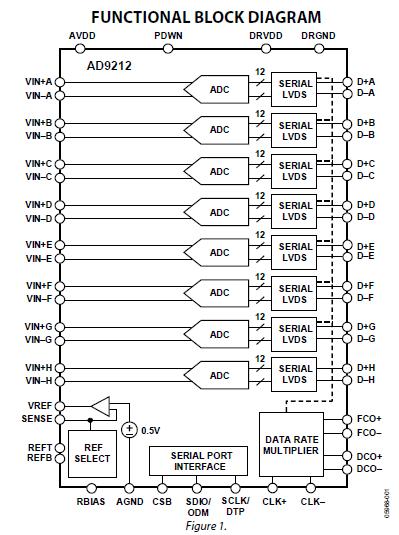

Diagrams
