The AD394JD is a quad 12-bit D/A converter. The AD394JD contains four 12-bit, high-speed, low power, voltage output multiplying digital-to-analog converters in a compact 28-pin hybrid package. The design is based on a proprietary latched 12-bit CMOS DAC chip which reduces chip count and provides high reliability. The AD394JD is ideal for systems requiring digital control of many analog voltages where board space is at a premium and low power consumption a necessity. Such applications include automatic test equipment, process controllers, and vector stroke displays.
Parametrics
AD394JD absolute maximum ratings: (1)+VS to DGND: -0.3V to +17V; (2)-VS to DGND: +0.3V to -17V; (3)Digital Inputs (pins 1-16) to DGND: -0.3V to +7V; (4)VREFIN to DGND: ±25V; (5)AGND to DGND: ±0.6V; (6)Analog Outputs (pins 18, 21, 24, 27): Indefinite Short to AGND or GDND Momentary Short to ±VS.
Features
AD394JD features: (1)Four Complete 12-bit CMOS DACs with Buffer registers; (2)Linearity Error ±1/2 LSB Tmin-Tmax; (3)Factory -Trimmed Gain and Offset; (4)Precision Output Amplifiers for VOUT; (5)Full Four Quadrant Multiplication per DAC; (6)Monotonicity Guaranteed Over Full Temperature Range; (7)Fast Setting: 15μs Max to ±12LSB; (8)Available to MIL-STD-883.

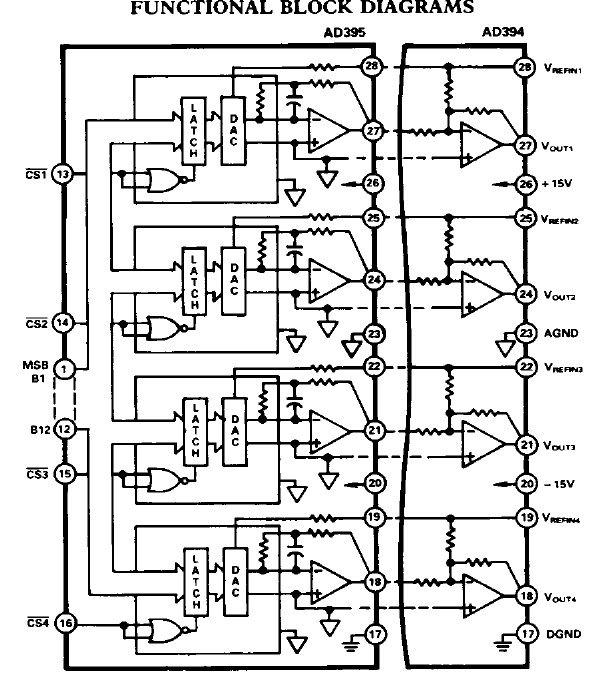

Diagrams
 |
 AD390JD |
|
IC DAC QUAD 12BIT 28-CDIP |
Data Sheet |
|
|
||||||
|
AD390KD |
|
IC DAC QUAD 12BIT 28-CDIP |
Data Sheet |
|
|
||||||
|
AD390SD |
|
IC DAC QUAD 12BIT 28-CDIP |
Data Sheet |
|
|
||||||
|
AD390TD |
|
IC DAC QUAD 12BIT 28-CDIP |
Data Sheet |
|
|
||||||
 |
AD394TD |
Analog Devices Inc |
IC DAC QUAD 12BIT 28-CDIP |
Data Sheet |
Negotiable |
|
||||||
