Product Summary
The A42MX09-PQ100I is an FPGA. The A42MX09-PQ100I offers a cost-effective design solution at 5V. The device is a single-chip solutions and provide high performance while shortening the system design and development cycle. The device can integrate and consolidate logic implemented in multiple PALs, CPLDs, and FPGAs. Example applications include high-speed controllers and address decoding, peripheral bus interfaces, DSP, and coprocessor functions. The A42MX09-PQ100I architecture is based on Actel’s patented antifuse technology implemented in a 0.45μm triplemetal CMOS process.
Parametrics
A42MX09-PQ100I absolute maximum ratings: (1)VCC, DC Supply Voltage: -0.5 to +7.0 V; (2)VI, Input Voltage: -0.5 to VCC+0.5 V; (3)VO, Output Voltage: -0.5 to VCC+0.5 V; (4)tSTG, Storage Temperature: -65 to +150℃.
Features
A42MX09-PQ100I features: (1)Single-Chip ASIC Alternative; (2)3,000 to 54,000 System Gates; (3)Up to 2.5 kbits Configurable Dual-Port SRAM; (4)Fast Wide-Decode Circuitry; (5)Up to 202 User-Programmable I/O Pins; (6)5.6 ns Clock-to-Out; (7)250 MHz Performance; (8)5 ns Dual-Port SRAM Access; (9)100 MHz FIFOs; (10)7.5 ns 35-Bit Address Decode; (11)Commercial, Industrial, Automotive, and Military Temperature Plastic Packages; (12)Commercial, Military Temperature, and MIL-STD-883 Ceramic Packages; (13)QML Certification; (14)Ceramic Devices Available to DSCC SMD.

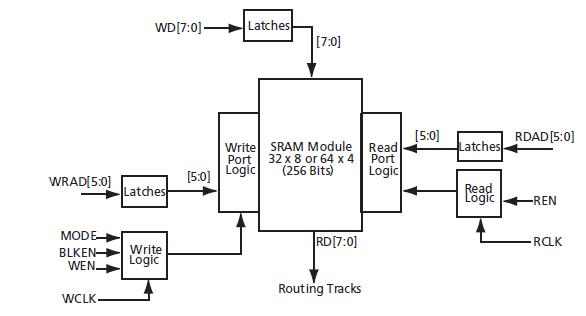

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A42MX09-PQ100I |
|
IC FPGA MX SGL CHIP 14K 100-PQFP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
A42MX09 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
A42MX09-1PL84 |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
|
A42MX09-1PL84I |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
|
A42MX09-1PL84M |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
|
A42MX09-1PLG84 |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
|
A42MX09-1PLG84I |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
