Product Summary
The 5962-9312601MXA is a low noise (1.7 nV/√Hz), high speed op amp with custom compensation that provides the user with gains from ±1 to ±20 while maintaining a bandwidth greater than 50 MHz. The 5962-9312601MXA’s 0.04° differential phase and 0.02% differential gain performance at 3.58 MHz and 4.43 MHz, driving reverse-terminated 50 Ω or 75 Ω cables, makes it ideally suited for professional video applications. The 5962-9312601MXA achieves its 230 V/μs uncompensated slew rate and 750 MHz gain bandwidth product while requiring only 5 mA of current from the power supplies.
Parametrics
5962-9312601MXA absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipations2, Plastic (N): 1.3 Watts; Small Outline (R): 0.9 Watts; Cerdip (Q): 1.3 Watts; LCC (E): 0.8 Watts; (3)Input Voltage: ±VS; (4)Differential Input Voltage3: ±6 Volts; (5)Output Short Circuit Duration: Indefinite; (6)Storage Temperature Range (Q, E): -65℃ to +150℃; (7)Storage Temperature Range (N, R) -65℃ to +125℃; (8)Operating Temperature Range 0℃ to +70℃; (9)Lead Temperature Range (Soldering 60 sec): +300℃.
Features
5962-9312601MXA features: (1)High Speed, 120 MHz Bandwidth, Gain =–1; 230 V/μs Slew Rate; 90 ns Settling Time to 0.1%; (2)Ideal for Video Applications, 0.02% Differential Gain; 0.04° Differential Phase; (3)Low Noise, 1.7 nV/√Hz Input Voltage Noise; 1.5 pA/√Hz Input Current Noise; (4)Excellent DC Precision, 1 mV max Input Offset Voltage (Over Temp); 0.3 μV/℃ Input Offset Drift; (5)Flexible Operation, Specified for ±5 V to ±15 V Operation; ±3 V Output Swing into a 150 Ω Load; External Compensation for Gains 1 to 20; 5 mA Supply Current; (6)Available in Tape and Reel in Accordance with EIA-481A Standard.

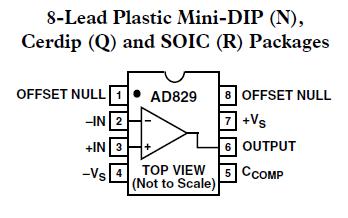

Diagrams
