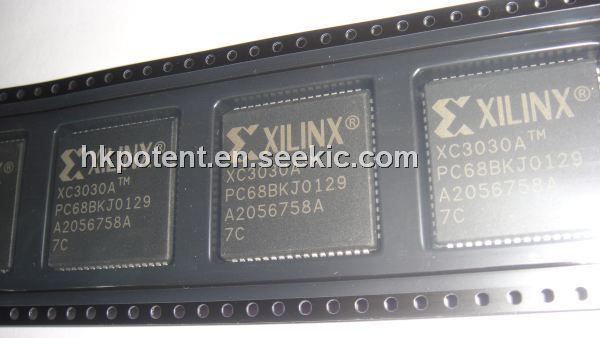

Product Summary
The XC3030A-7PC68C is a Field Programmable Gate Array (FPGA) provides a group of high-performance, high-density, digital integrated circuits. Its regular, extendable, flexible, user-programmable array architecture is composed of a configuration program store plus three types of configurable elements: a perimeter of I/O Blocks (IOBs), a core array of Configurable Logic Bocks (CLBs) and resources for interconnection. The development system of the XC3030A-7PC68C provides schematic capture and auto place-and-route for design entry.
Parametrics
XC3030A-7PC68C absolute maximum ratings: (1)VCC, Supply voltage relative to GND: -0.5 to +7.0 V; (2)VIN, Input voltage with respect to GND: -0.5 to VCC +0.5 V; (3)VTS, Voltage applied to 3-state output: -0.5 to VCC +0.5 V; (4)TSTG, Storage temperature (ambient): -65 to +150℃; (5)TSOL, Maximum soldering temperature (10 s @ 1/16 in.): +260℃; (6)TJ, Junction temperature plastic +125℃; Junction temperature ceramic +150℃.
Features
XC3030A-7PC68C features: (1)Complete line of four related Field Programmable Gate Array product families, XC3000A, XC3000L, XC3100A, XC3100L; (2)Ideal for a wide range of custom VLSI design tasks, Replaces TTL, MSI, and other PLD logic; Integrates complete sub-systems into a single package; Avoids the NRE, time delay, and risk of conventional masked gate arrays; (3)High-performance CMOS static memory technology, Guaranteed toggle rates of 70 to 370 MHz, logic delays from 7 to 1.5 ns; System clock speeds over 85 MHz; Low quiescent and active power consumption; (4)Flexible FPGA architecture, Compatible arrays ranging from 1,000 to 7,500 gate complexity; Extensive register, combinatorial, and I/O capabilities; High fan-out signal distribution, low-skew clock nets; Internal 3-state bus capabilities; TTL or CMOS input thresholds; On-chip crystal oscillator amplifier; (5)Unlimited reprogrammability, Easy design iteration; In-system logic changes; (6)Extensive packaging options, Over 20 different packages; Plastic and ceramic surface-mount and pin-gridarray packages;Thin and Very Thin Quad Flat Pack (TQFP and VQFP) options; (7)Ready for volume production, Standard, off-the-shelf product availability; 100% factory pre-tested devices; Excellent reliability record; (8)Complete Development System, Schematic capture, automatic place and route; Logic and timing simulation; Interactive design editor for design optimization; Timing calculator; Interfaces to popular design environments like Viewlogic, Cadence, Mentor Graphics, and others.

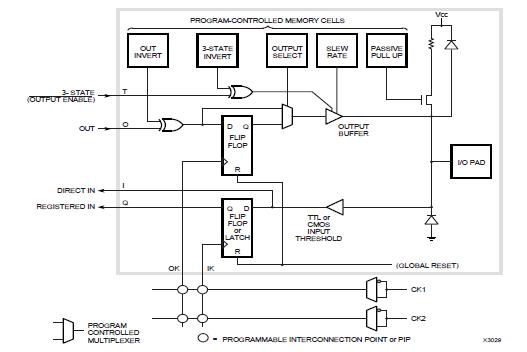

Diagrams
