Product Summary

The XC2S200E-6PQG208C is an Field-Programmable Gate. The XC2S200E-6PQG208C gives users high performance, abundant logic resources, and a rich feature set, all at an exceptionally low price. The device offers densities ranging from 50,000 to 600,000 system gates. Features include block RAM (to 288K bits), distributed RAM (to 221,184 bits), 19 selectable I/O standards, and four DLLs (Delay-Locked Loops).

Parametrics

XC2S200E-6PQG208C absolute maxing ratings: (1)VCCINT Supply voltage relative to GND: min=-0.5V, max=2.0V; (2)VCCO Supply voltage relative to GND: min=-0.5V, max=4.0V; (3)VREF Input reference voltage: min=-0.5V, max=4.0V; (4)VIN Input voltage relative to GND: min=-0.5V, max=4.0V; (5)VTS Voltage applied to 3-state output: min=-0.5V, max=4.0V ; (6)TSTG Storage temperature (ambient): min=-65℃, max=+150℃; (7)TJ Junction temperature: max=+125℃.

Features

XC2S200E-6PQG208C features: (1)SelectRAM hierarchical memory; (2)Fully 3.3V PCI compliant to 64 bits at 66 MHz and CardBus compliant; (3)Low-power segmented routing architecture; (4)Dedicated carry logic for high-speed arithmetic; (5)Efficient multiplier support; (6)Cascade chain for wide-input functions; (7)Abundant registers/latches with enable, set, reset; (8)Four dedicated DLLs for advanced clock control; (9)Four primary low-skew global clock distribution nets; (10)IEEE 1149.1 compatible boundary scan logic.

Diagrams

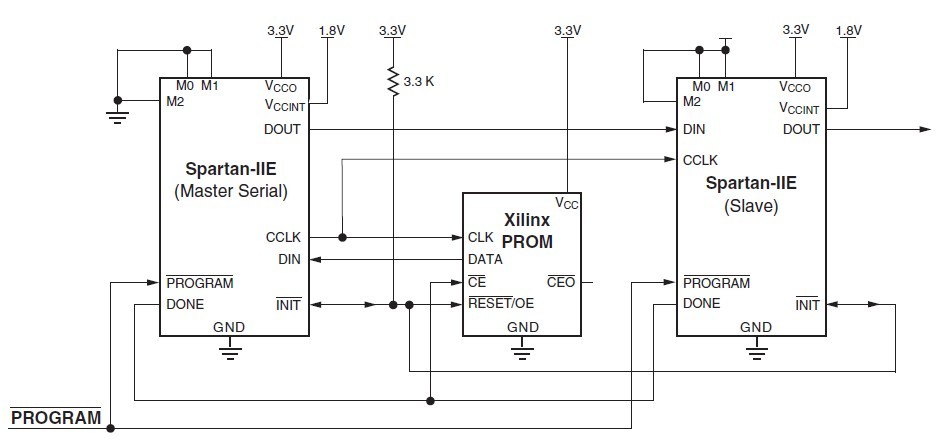

XC2S200E-6PQG208C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC2S200E-6PQG208C
XC2S200E-6PQG208C


IC SPARTAN-IIE FPGA 200K 208PQFP

Data Sheet

0-48: $18.00
