Product Summary

The TD62384AP is an 8ch low input active darlington sink driver. It is comprised of eight NPN darlington output stages and PNP input stages. The TD62384AP can be operated by source input voltage and is suitable for operations with a 5-V general purposed logic IC such as 5-V TTL, 5-V CMOS and 5-V Microprocessor which have sink current output drivers.

Parametrics

TD62384AP absolute maximum ratings: (1)Supply Voltage VCC: -0.5~7.0 V; (2)Output Sustaining Voltage VCE (SUS): -0.5~50 V; (3)Output Current IOUT: 500 mA / ch; (4)Input Voltage VIN: -22~VCC + 0.5 V; (5)Input Current IIN: -10 mA; (6)Power Dissipation PD: 0.96 W; (7)Operating Temperature Topr: -40~85 ℃; (8)Storage Temperature Tstg: -55~150 ℃.

Features

TD62384AP features: (1)Output current (single output) 500 mA (Max); (2)High sustaining voltage 50 V (Min); (3)Low level active input; (4)Inputs compatible with 5-V TTL and 5-V CMOS; (5)Package type-APG: DIP-18 pin; (6)Package type-AFG: SOP-18 pin.

Diagrams

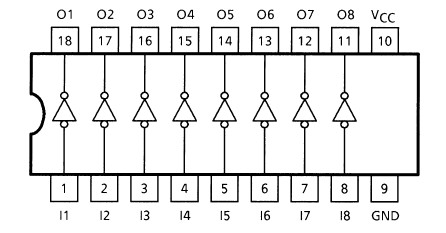

TD62384AP block diagram
