Product Summary

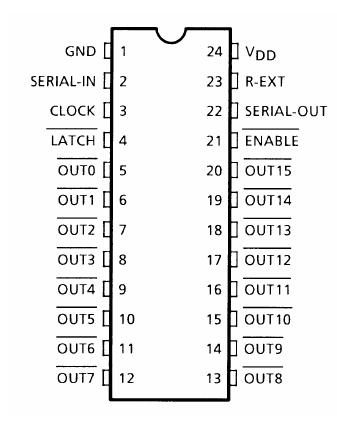

The TB62706BNG is a 16bit shift register, latch & constant current driver specifically designed for LED and LED DISPLAY constant current drivers. This constant current output circuits are able to set up external resistor (IOUT = 5~90 mA). The TB62706BNG is monolithic integrated circuit designed to be used together with Bi- CMOS process. The device consists of 16bit shift register, latch, AND- GATE and Constant Current Drivers. The product is Pb free.

Parametrics

TB62706BNG absolute maximum ratings: (1)Supply Voltage, VDD: 0~7.0 V; (2)Input Voltage, VIN: -0.4~VDD + 0.4 V; (3)Output Current, IOUT: 90 mA; (4)Output Voltage, VOUT: -0.5~17.0 V; (5)Clock Frequency, fCK: 15 MHz; (6)GND Terminal Current, IGND: 1440 mA; (7)Power Dissipation, PD: 1.78 (BNG- type: ON PCB, Ta = 25℃); 1.00 (BFG- type : ON PCB, Ta = 25℃)W; (8)Tharmal Resistance, Rth (j- a): BNG: 70 (BN- type: ON PCB); BFG: 120 (BF- type: ON PCB)℃/W; (9)Operating Temperature, Topr: -40 to 85℃; (10)Storage Temperature, Tstg: -55 to 150℃.

Features

TB62706BNG features: (1)Constant Current Output: Can set up all output current with one resister for 5 to 90 mA; (2)Maximum Clock Frequency: fCLK = 15 (MHz) (Cascade Connected Operate, Topr = 25℃); (3)5 V C- MOS Compatible Input; (4)Package: SDIP24- P- 300- 1.78 (TB62706BNG) SSOP24- P- 300- 1.00B (TB62706BFG).
