Product Summary
The SFH350V is a Plastic Fiber Optic Phototransistor Detector. The applications of the SFH350V include Household Electronics, Power Electronics, Optical Networks, and Light Barriers.
Parametrics
SFH350V absolute maximum ratings: (1)Operating Temperature Range: -40℃ to +85℃; (2)Storage Temperature Range: -40 to +100 ℃; (3)Soldering Temperature (2 mm from case bottom, t≤5s): 260 ℃; (4)Collector-Emitter Voltage: 50V; (5)Collector Current: 50mA; (6)Collector Peak Current (t≤10s): 100mA; (7)Emitter-Bias Voltage: 7V; (8)Reverse Voltage: 30V; (9)Power Dissipation TA = 25℃: 200mW; (10)Thermal Resistance, Junction/Air: 375K/W.
Features
SFH350V features: (1)2.2 mm Aperture holds Standard 1000 Micron Plastic Fiber; (2)No Fiber Stripping Required; (3)Good Linearity; (4)Sensitive in visible and near IR Range; (5)Molded Microlens for Efficient Coupling.

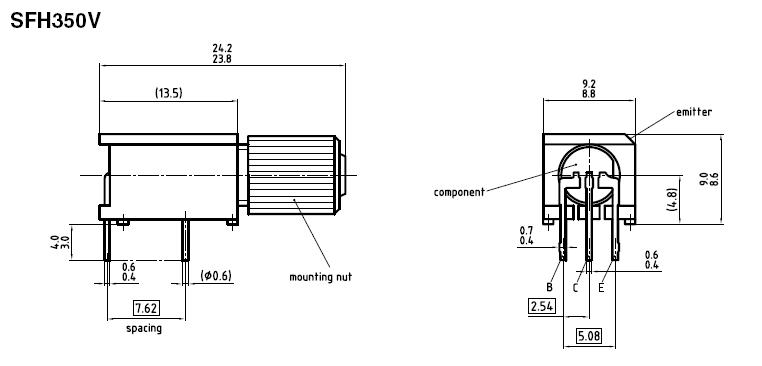

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

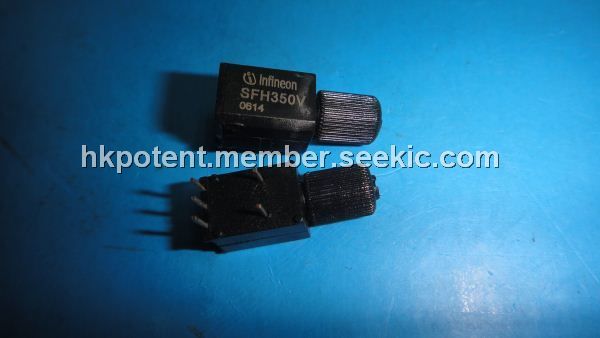

 SFH350V |
Other |
|
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
SFH305-2/3 |
|
PHOTO TRANSISTOR NPN 850NM |
Data Sheet |
|
|
||||||
|
SFH3500FA |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
SFH350V |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
SFH3500 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
SFH325FA |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
SFH325 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
