Product Summary

The OP291GSZ is Micropower single-Supply rail-to-rail input/output op amp, which is used in industrial process control, battery-powered instrumentation and so on. Fabricated on Analog Devices CBCMOS process, the OP291GSZ has a unique input stage that allows the input voltage to safely extend 10 V beyond either supply without any phase inversion or latch-up.

Parametrics

OP291GSZ absolute maximum ratings: (1)Supply Voltage: 16 V; (2)Input Voltage: GND to VS 10 V; (3)Differential Input Voltage:7 V; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range, N, R, RU Packages: -65 to +150℃; (6)Operating Temperature Range: -40 to +125℃; (7)Junction Temperature Range: -65 to +150℃; (8)Lead Temperature (Soldering, 60 sec): 300℃.

Features

OP291GSZ features: (1)Single-supply operation: 2.7 V to 12 V; (2)Wide input voltage range; (3)Rail-to-rail output swing; (4)Low supply current: 300 μA/amp; (5)Wide bandwidth: 3 MHz; (6)Slew rate: 0.5 V/μs; (7)Low offset voltage: 700 μV; (8)No phase reversal.

Diagrams

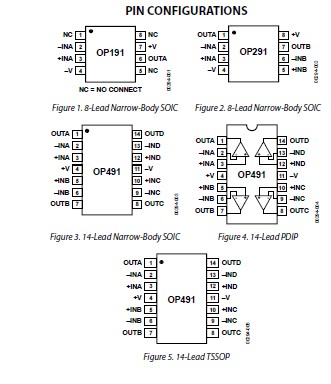

OP291GSZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OP291GSZ
OP291GSZ

IC OPAMP GP R-R 3MHZ DUAL 8SOIC
Data Sheet
0-1: $3.22
1-10: $2.88
10-100: $2.36
100-250: $2.13
250-500: $1.91
500-1000: $1.61
1000-2500: $1.53
OP291GSZ-REEL
OP291GSZ-REEL

IC OPAMP GP R-R 3MHZ DUAL 8SOIC
Data Sheet
0-2500: $1.53
OP291GSZ-REEL7
OP291GSZ-REEL7

IC OPAMP GP R-R 3MHZ DUAL 8SOIC
Data Sheet
0-1000: $1.61
