Product Summary

The NSD03A10 is a diode. The application of the NSD03A10 is For General Use.

Parametrics

NSD03A10 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage: 100V; (2)Average Rectified Output Current: 1.57A @TA=25℃; (3)RMS Forward Current: 4.71A; (4)Surge Forward Current: 80A; (5)Operating Junction Temperature Range: -40 to 150℃; (6)Storage Temperature Range: -40 to 150℃.

Features

NSD03A10 features: (1)Peak Reverse Current: 50μA; (2)Peak Forward Voltage: 1.0V; (3)Thermal Resistance Junction to Ambient: 89℃/W; (4)Junction to Lead: 13℃/W.

Diagrams

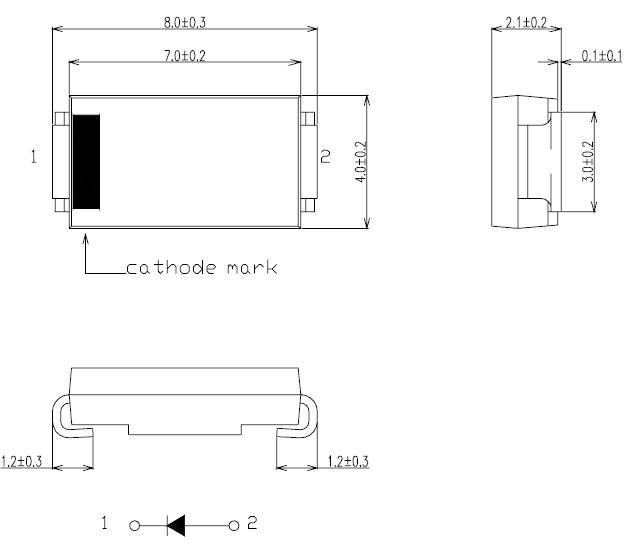

NSD03A10 dimension
