Product Summary
The MAX727ECK is a monolithic, bipolar, pulse-width modulation (PWM), switch-mode, step-down DC-DC regulator. Each is rated at 2A. Very few external components are needed for standard operation because the power switch, oscillator, feedback, and control circuitry are all on-chip. Employing a classic buck topology, the MAX727ECK performs high-current step-down functions. The applications of the MAX727ECK include Distributed Power from High-Voltage Buses, High-Current, High-Voltage Step-Down Applications, and Multiple-Output Buck Converter.
Parametrics
MAX727ECK absolute maximum ratings: (1)Input Voltage: 45V; (2)Switch Voltage with Respect to Input Voltage: 50V; (3)Switch Voltage with Respect to GND Pin (VSW negative) (Note 1): 35V; (4)SENSE Pin Voltage: -0.3V, +10V; (5)Operating Temperature Ranges: -40℃ to +85℃; (6)Junction Temperature Ranges:: -40℃ to +125℃; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX727ECK features: (1)Input Range: Up to 40V; (2)2A On-Chip Power Switch; (3)Fixed Outputs: 5V (MAX727) 3.3V (MAX728) 3V (MAX729); (4)100kHz Switching Frequency; (5)Excellent Dynamic Characteristics; (6)Few External Components; (7)8.5mA Quiescent Current; (8)TO-220 Package.

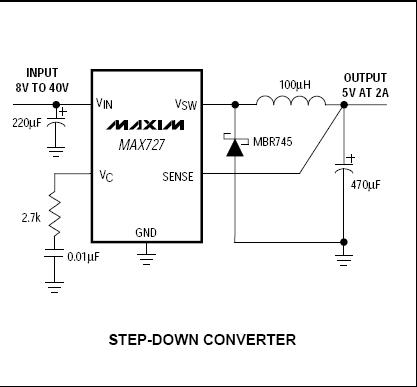

Diagrams
