Product Summary

The MAX4147ESD+ is a differential line driver. It offers high-speed performance while consuming only 100mW of power. Its amplifier has fully symmetrical inputs and outputs and uses laser-trimmed, matched, thin-film resistors to deliver 70dB CMR at 10MHz. Using current-feedback techniques; the MAX4147ESD+ achieves a 300MHz bandwidth and a 2000V/μs slew rate. The applications of the MAX4147ESD+ include VDSL, ADSL, HDSL, Video Twisted-Pair Driver, Differential Pulse Amplifier, and Differential ADC Driver.

Parametrics

MAX4147ESD+ absolute maximum ratings: (1)Supply Voltage (VCC to VEE): 12V; (2)Voltage on Any Input to Ground: (VCC + 0.3V) to (VEE - 0.3V); (3)Continuous Power Dissipation (TA = +70℃) SO (derate 8.33mW/℃ above +70℃): 667mW; (4)Short-Circuit Duration: 10sec; (5)Operating Temperature Range MAX4147ESD: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +160℃; (7)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX4147ESD+ features: (1)2V/V Fixed Gain; (2)300MHz -3dB Bandwidth; (3)2000V/μs Slew Rate; (4)82dBc SFDR at 10kHz; (5)70dB CMR at 10MHz; (6)Low Differential Gain/Phase: 0.008%/0.03°High Output Drive: ±5.6V into 53Ω; (7) Low Power: 100mW.

Diagrams

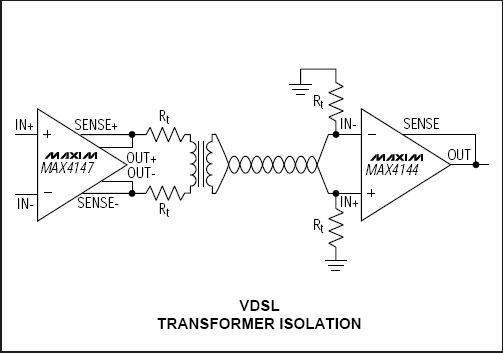

MAX4147ESD+ block diagram
