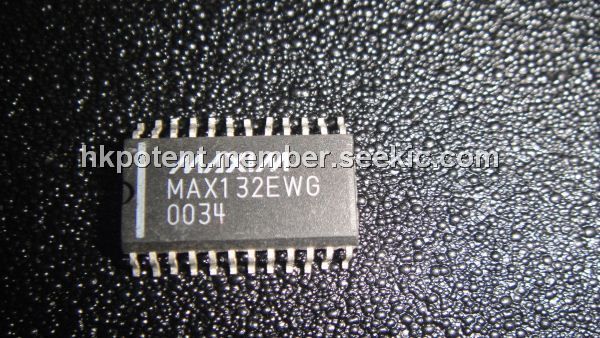

MAX132CWG

MAX132CWG, CMOS, 18-bit plus sign, serial-output, analog-to-digital converter, 478mW, 60μA, 15μVRMS, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~20.00

PartNumber:: MAX132CWG

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Judy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-09

From Other Seller

Part Number:MAX132CWG
US $5.00 - 20.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

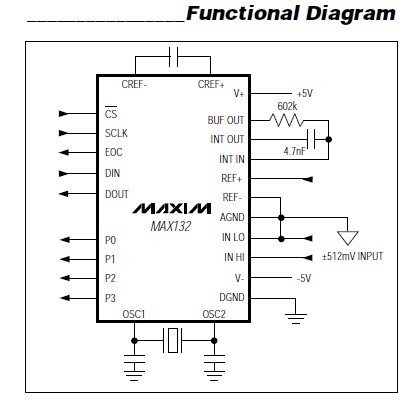

The MAX132CWG is a CMOS, 18-bit plus sign, serial-output, analog-to-digital converter (ADC). Multi-slope integration provides high-resolution conversions in less time than standard integrating ADCs, allowing operation up to 100 conversions per second. Low conversion noise of the MAX132CWG provides guaranteed operation with ±512mV full-scale input range (2uV/LSB). A simple 4-wire serial interface connects easily to all common microprocessors, and twos-complement output coding simplifies bipolar measurements. Typical supply current is only 60uA and is reduced to 1uA in sleep mode. Four serially programmed digital outputs can be used to control an external multiplexer or programmable-gain amplifier. The MAX132CWG comes in 24-pin narrow DIP and wide SO packages, and is available in commercial and extended temperature grades.

Parametrics

MAX132CWG absolute maximum ratings: (1)Supply Voltage V+ to DGND: -0.3V < V+ < +6.0V; (2)V- to DGND: +0.3V < V- < -9.0V; (3)V+ to V-: +15V; (4)Analog Input Voltage (any input): V+ to V Digital; (5)Input Voltage: (DGND - 0.3V) to (V+ + 0.3V); (6)Continuous Power Dissipation Narrow Plastic DIP (derate 8.70mW/℃ above +70℃): 478mW; (7)Wide SO (derate 11.76mW/℃ above +70℃): 647mW; (8)Narrow CERDIP (derate 12.50mW/℃ above +70℃): 688mW; (9)Operating Temperature Ranges: 0℃ to +70℃; (10)Storage Temperature Range: -65℃ to +160℃; (11)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX132CWG features: (1)Low Supply Current: 60μA (Normal Operation), 1μA (Sleep-Mode Operation); (2)±0.006% FSR Accuracy at 16 Conv/sec; (3)Low Noise: 15μVRMS; (4)Serial I/O Interface with Programmed Output for Mux and PGA; (5)Performs up to 100 Conv/sec; (6)±2pA Input Current; (7)50Hz/60Hz Rejection.
