Product Summary

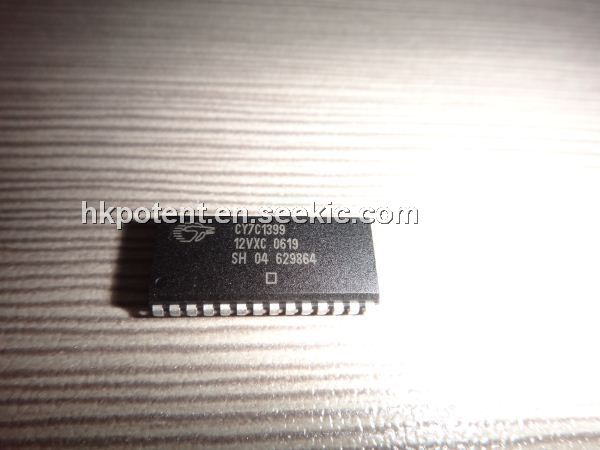

The CY7C1399-12VXC is a high-performance 3.3V CMOS Static RAM organized as 32,768 words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE) and active LOW Output Enable (OE) and three-state drivers. The CY7C1399-12VXC has an automatic power-down feature, reducing the power consumption by more than 95% when deselected.
Parametrics
CY7C1399-12VXC absolute maximum ratings: (1)Storage Temperature:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–55℃ to +125℃; (3)Supply Voltage on VCC to Relative GND[1]:–0.5V to +4.6V; (4)DC Voltage Applied to Outputs in High Z State[1]:–0.5V to VCC + 0.5V; (5)DC Input Voltage[1]:–0.5V to VCC + 0.5V; (6)Output Current into Outputs (LOW): 20mA; (7)Static Discharge Voltage: >2001V (per MIL-STD-883, Method 3015); (8)Latch-Up Current: >200mA.
Features
CY7C1399-12VXC features: (1)Single 3.3V power supply; (2)Ideal for low-voltage cache memory applications; (3)High speed: 12/15 ns; (4)Low active power: 255mW (max.); (5)Low CMOS standby power (L): 180μW (max.), f=fMAX; (6)2.0V data retention (L): 40μW; (7)Low-power alpha immune 6T cell; (8)Plastic SOJ and TSOP packaging.
