Product Summary

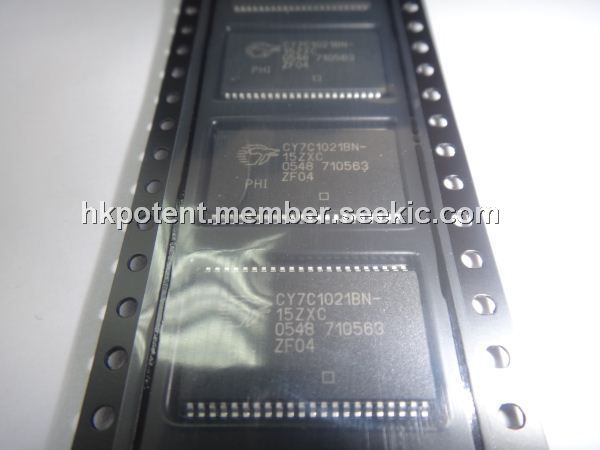

The CY7C1021BN-15ZXC is a high-performance CMOS static RAM organized as 65,536 words by 16 bits. The CY7C1021BN-15ZXC has an automatic power-down feature that significantly reduces power consumption when deselected. The CY7C1021BN-15ZXC is available in standard 44-pin TSOP Type II and 44-pin 400-mil-wide SOJ packages. Customers should use part number CY7C1021BN-15ZXC when ordering 12 ns and 15 ns tAA.
Parametrics
CY7C1021BN-15ZXC absolute maximum ratings: (1)Storage Temperature:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–55℃ to +125℃; (3)Supply Voltage on VCC Relative to GND:–0.5V to +7.0V; (4)DC Voltage Applied to Outputs in High Z State:–0.5V to VCC+0.5V; (5)DC Input Voltage:–0.5V to VCC+0.5V; (6)Current into Outputs (LOW): 20mA; (7)Static Discharge Voltage: ＞2001V (per MIL-STD-883, Method 3015); (8)Latch-Up Current: ＞200mA.
Features
CY7C1021BN-15ZXC features: (1)Temperature Ranges; (2)Commercial: 0℃ to 70℃; (3)Industrial: -40℃ to 85℃; (4)Automotive-A: -40℃ to 85℃; (5)Automotive-E: -40℃ to 125℃; (6)High speed; (7)tAA = 10 ns (Commercial); (8)tAA = 15 ns (Automotive); (9)CMOS for optimum speed/power; (10)Low active power 825mW (max.); (11)Automatic power-down when deselected; (12)Independent control of upper and lower bits; (13)Available in Pb free and non Pb free 44-pin TSOP II and 44-pin 400-mil-wide SOJ.

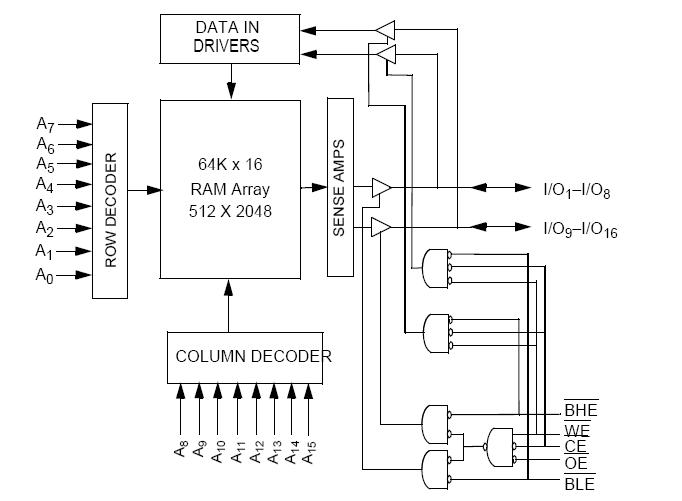

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY7C1021BN-15ZXC |
|
IC SRAM 1MBIT 15NS 44TSOP |
Data Sheet |
Negotiable |
|
||||
|
CY7C1021BN-15ZXCT |
|
IC SRAM 1MBIT 15NS 44TSOP |
Data Sheet |
Negotiable |
|
||||
