CY62148ELL-45ZSXI

CY62148ELL-45ZSXI, 4-Mbit (512K x 8) Static RAM, CSOP, -0.5V to 6.0V, 20mA, Cypress Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.85~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 200 :	2.95 / Piece
201 ~ 300 :	2.85 / Piece

PartNumber:: CY62148ELL-45ZSXI

Brand:: Cypress Semiconductor - Cypress | Pack: CSOP | D/C: 04+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-26

From Other Seller

Part Number:CY62148ELL-45ZSXI
US $2.85 - 3.00
Quantity:

piece

Product Summary

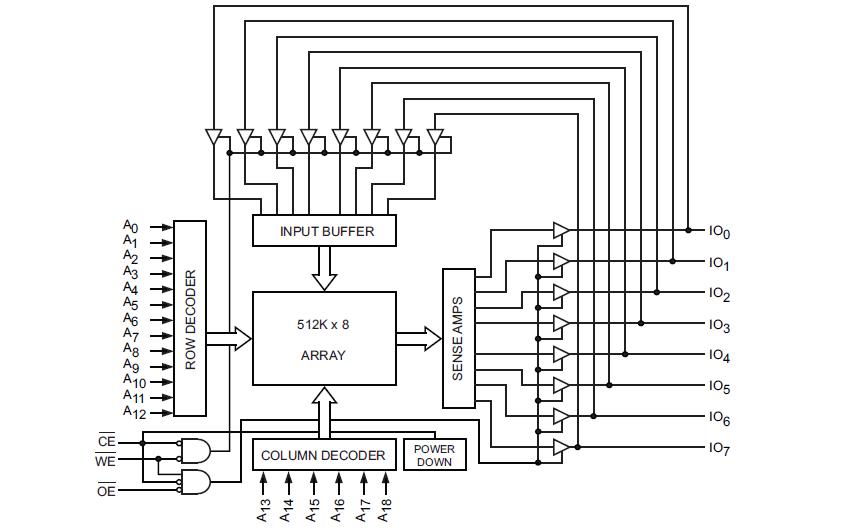

The CY62148ELL-45ZSXI is a high performance CMOS static RAM organized as 512K words by 8 bits. This device features advanced circuit design to provide ultra low active current. This is ideal for providing More Battery Life (MoBL in portable applications such as cellular telephones. The CY62148ELL-45ZSXI also has an automatic power down feature that significantly
reduces power consumption when addresses are not toggling. Placing the device into standby mode reduces power consumption by more than 99% when deselected (CE HIGH).

Parametrics

CY62148ELL-45ZSXI absolute maximum ratings: (1)Storage Temperature: -65℃ to + 150℃; (2)Ambient Temperature with Power Applied: -55℃ to + 125℃; (3)Supply Voltage to Ground Potential: -0.5V to 6.0V (VCCmax + 0.5V); (4)DC Voltage Applied to Outputs in High-Z State: -0.5V to 6.0V (VCCmax + 0.5V); (5)DC Input Voltage: -0.5V to 6.0V (VCCmax + 0.5V); (6)Output Current into Outputs (LOW): 20 mA; (7)Static Discharge Voltage: > 2001V; (8)(per MIL-STD-883, Method 3015); (9)Latch-up Current: >200mA.

Features

CY62148ELL-45ZSXI features: (1)Very high speed: 45 ns; (2)Voltage range: 4.5V-5.5V; (3)Pin compatible with CY62148B; (4)Ultra low standby power, Typical standby current: 1μA; Maximum standby current: 7μA (Industrial); (5)Ultra low active power, Typical active current: 2.0 mA @ f = 1 MHz; (6)Easy memory expansion with CE, and OE features; (7)Automatic power down when deselected; (8)CMOS for optimum speed and power; (9)Available in Pb-free 32-pin TSOP II and 32-pin SOIC packages.
